Loader Cranes

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

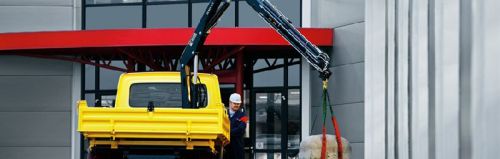

Hiab has always been associated with high quality and continuous improvements. Especially designed for long outreach, the Hiab XS 044 goes far beyond your expectations. If you choose to fit your crane with D-link and the maximum of four boom extensions you are provided 330 kg loading capacity at an outreach over nine metres – with performance and smoothness as distinguishing features. The Hiab XS 044 is a light, compact crane ensuring high reliability and flexibility for everyday use.

View More Details

Send Enquiry

Company Information

HIAB Middle East L.L.C

Dubai

View Number

Member Since 11 Years
Nature of Business Supplier

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Technical info	B-1 CLX	D-4 CLX	D-4 Duo	D-3 HiDuo
Max lifting capacity	37 kNm	36 kNm	36 kNm	37 kNm
Outreach - hydraulic extensions	4.9 m	9.4 m	9.4 m	7.9 m
Outreach - manual extensions	8.0 m			9.4 m
Outreach / lifting capacity	3.4 m / 990 kg	3.5 m / 980 kg	3.5 m / 980 kg	3.5 m / 1040 kg
	4.7 m / 780 kg	9.1 m / 330 kg	9.1 m / 330 kg	7.7 m / 440 kg
Slewing angle	380°	380°	380°	380°
Height in folded position	1610 mm	1610 mm	1610 mm	1610 mm
Width in folded position	1900 mm	1890 mm	1890 mm	1890 mm
Installation space needed	535 mm	600 mm	600 mm	580 mm
Weight - "standard" crane without stabilizers	450 kg	575 kg	575 kg	540 kg
Weight - stabilizer equipment
