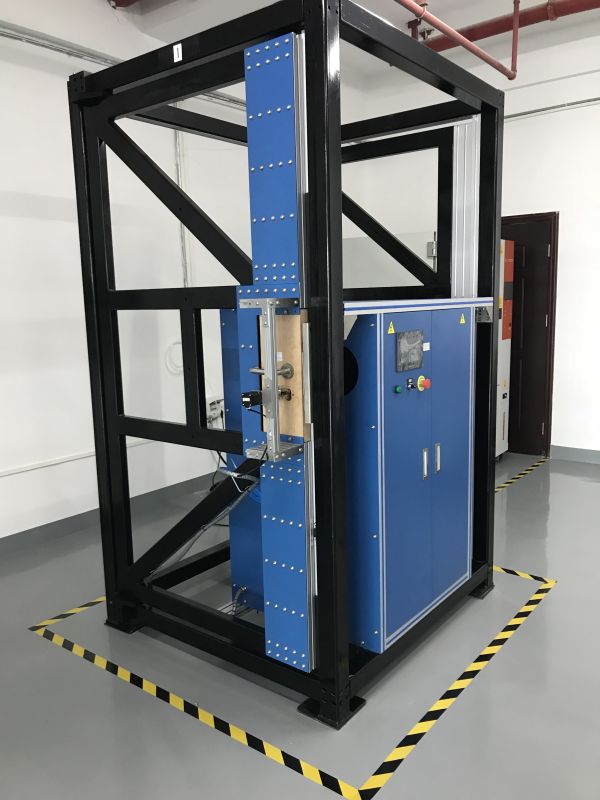

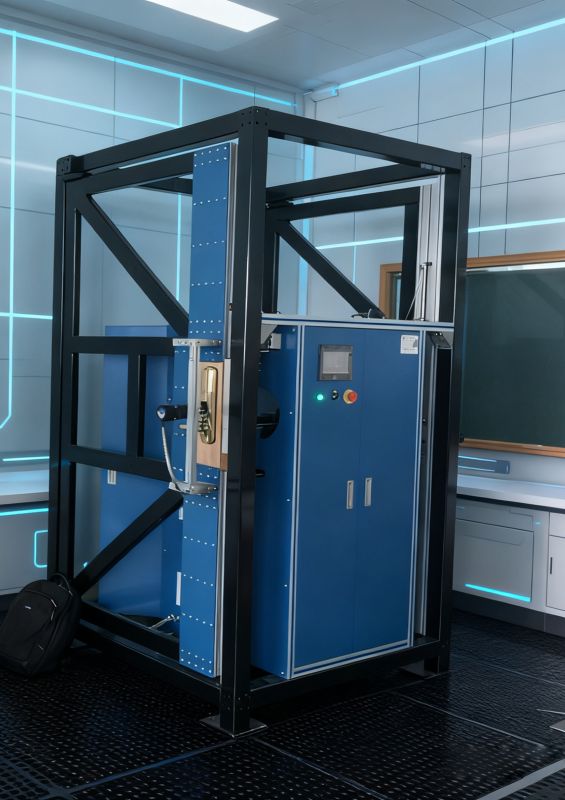

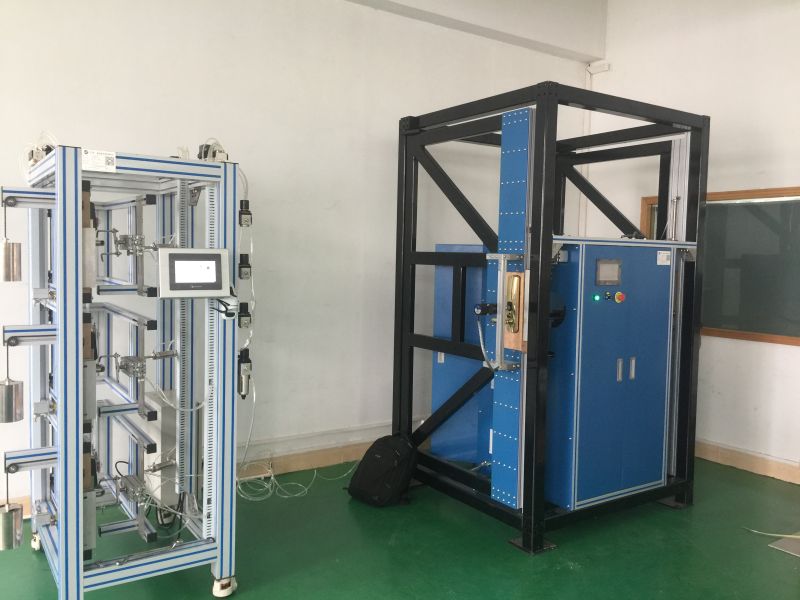

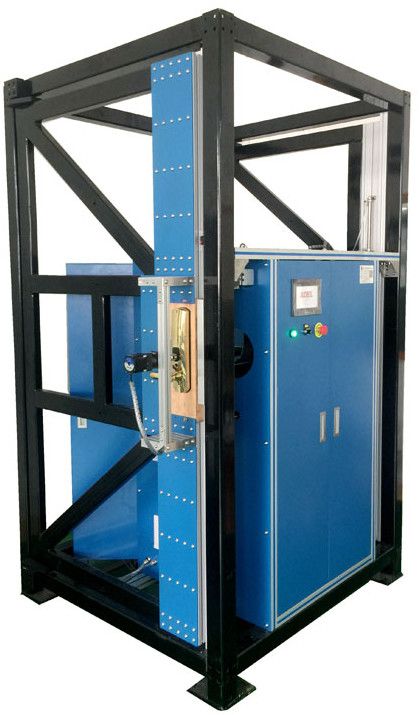

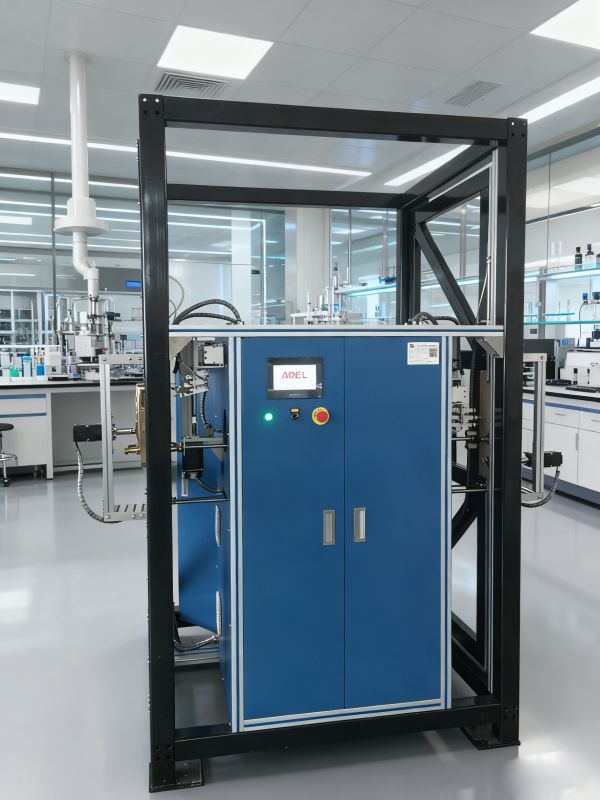

Lock Durability Test Machine EN Standard

Test equipment function：

     The equipment is designed to test operational and durability performance of mechanical locks according to European harmonized standards. A special loading and action device was equipped on this automatic machine to load the latch bolt during operating the lock follower. This lock handle is operated by air cylinder to provide high reliable performance. An motor was used to operate the key or turn in high repeatability and exact angle control. It is super added value facility to identify classification and quality of lock or find out any product defect.

Equipment parameters：

Model：ZNEN12209-2

Frame: Steel frame, paint

Size：L 1.4 m * W 1.2 m * H 2.4 m

Test door size: 2100mm * 1100mm

Test doors: Two test doors with steel frame with enough strength to support the door mass

Test door mass: 60kg, User can easy increase to desired test door mass by stack steel plate, for examples 200kg if needed.

Door handles cycle operation: operated by air cylinder. Door position is monitored by optical sensor. 10 Nm Maximum driving moment.

Key cycle operation: motor operation with precise angle control, 5 Nm maximum driving moment

PLC: Panasonic  ;  Pneumatic parts: Airtac brand.

The equipment meet with standards requirement of  EN 12209: 2016

Latch loading: special designed adjustable mass load of 0, 10N, 25N, 50N, 120Napplied latch bolt when operate door handle or key to open the door.
