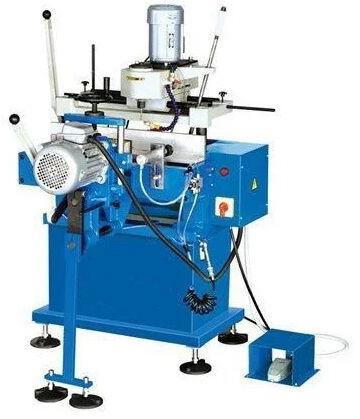

SpecialitiesUsed For Copy-routing Processing Various Kinds Of Holes,Grooves On UPVC Profiles.,Copy Routing 1:1 Ratio For Easy Transfer Of The Routing Pattern From A Template To The Profile. Pneumatic Horizontal Clamping.
SpecialitiesUsed For Copy-routing Processing Various Kinds Of Holes,Grooves On UPVC Profiles.,Copy Routing 1:1 Ratio For Easy Transfer Of The Routing Pattern From A Template To The Profile. Pneumatic Horizontal Clamping.
Availability250 kg
Overall dimension1000 x 1130 x 1600 mm
Diameter Of The Three Hole Drilling Head12 mm
Working Pressure0.6 - 0.8 mpa
Model Name/NumberLZ3F-290x100
Milling Cutter Diameter5mm, 8mm
Distance of 3 hole Drilling Head21.5 x 21.5 mm
Copy routing range290 x 100 mm
Power supply380V/50Hz
Input Power2.25 kW
