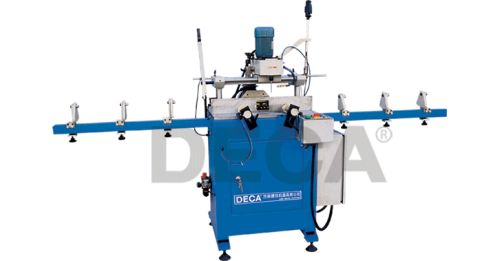

Lock Hole Milling Machine

₹ 1.78 Lakh / 2200 2200 Set

MOQ1 Set(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering lock hole milling machine. automatic lock hole milling machine szsa-100 function: milling all kinds of lock holes. features: formed by three-hole drill part (horizontal direction)....

Company Information

Member Since 12 Years
Nature of Business Supplier
Year of Establishment 1991

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering lock hole milling machine.
automatic lock hole milling machine szsa-100
function:
milling all kinds of lock holes.
features:
formed by three-hole drill part (horizontal direction) and copy milling part (vertical direction).
the height of three-hole drilling can be adjusted easily.
three-hole drill designed behind and operated easily.
adopt vertical axis to ensure the parallel precision of the three-hole drill.
adopt hydro-pneumatic actuator cylinderâ�¯feeding to save labor.(szsa-100)
easy adjustment of the processing position.
parameter:
air pressure:0.5mpa~0.8mpa
air consumption:20l/min
input voltage:380v 50hz
input power:1.1kw, 0.75kw
three-hole cutter diameter:ï�12mm ï�10mm
copy cutter diameter:ï�5mm ï�8mm
copy milling range:290mmã�90mm(lengthã�width)
overall dimension:3150mmã�1020mmã�1600mm
weight:400kg.
