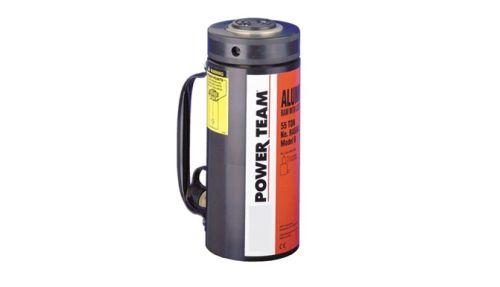

Locking Collar Single Acting Spring Return Aluminium Cylinder

CategoryHydraulic Products
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Single-Acting, Spring return. Positive mechanical lock to support load. POSITIVE MECHANICAL LOCK TO SUPPORT LOAD. Supports lifted load for extended periods of time with hydraulic pressure released. At half the weight of steel cylinders of comparable capacity, aluminum cylinders are ideal when portability is a key factor. Feature carrying handle. ASME B30.1 10,000 PSI / 700 BAR

View More Details

Send Enquiry

Company Information

Integrated Systems Tools

MG Road, Secunderabad, Telangana

View Number

Member Since 10 Years
Nature of Business Retailer
GST No. 36AGRPJ2053M1Z0

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

ORDER NUMBER	CYLINDER CAPACITY (TONS)	STROKE (MM.)	OIL CAPACITY (CU. CM.)	BORE DIAMETER (MM.)	CYLINDER EFFECTIVE AREA (SQ. IN.)	METRIC TONS AT 700 BAR	WEIGHT (KG.)
RA556L	55	155,5	1.109	95,3	71,2	50,1	13,4
RA1006L	100	158,8	2.116	130,2	133,0	93,5	29,1
Note: Supported loads not to exceed the rated capacity of the cylinders. Not intended to support additional dynamic loads, such as those applied by moving vehicles.
