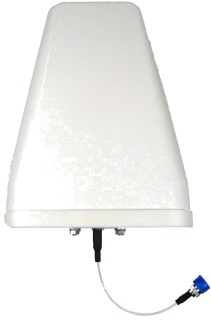

Log Periodic Antenna

We are providing log peroidic antenna.
application:2g3g mobile network
frequency range:800-960, 1710-2500mhz
average gain:7-9 dbi 800-960 mhz
4-7 dbi 1710-2500 mhz
vswr:1.5 :1
impedance:50ω
max input power:100w
polarization:vertical
hpbw:360
radome color:white
radome dimensions:290×206×65 mm
cable and connector:n female
operating temperature:-30℃ to +60℃
storage temperature:-40℃ to +70℃
net weight:900g
accessories:bracket
free sample
price and other details to be agreed
widely used in wireless equipments of gsm, cdma, wcdma, cdma2000, td-scdma, lte, dvb-t, gps, gpsone, glonass, beidou, wi-fi, wimax, bluetooth, isa100, zigbee, wireless hart, wia-pa, etc. Such as mobile phone, pad, router, wireless surveillance, wireless security, industrial wireless networks, navigation device, vehicle wireless device, etc.
