Log Saw Cutting Machine

I. Introduction
model name: dc-lsm-ii

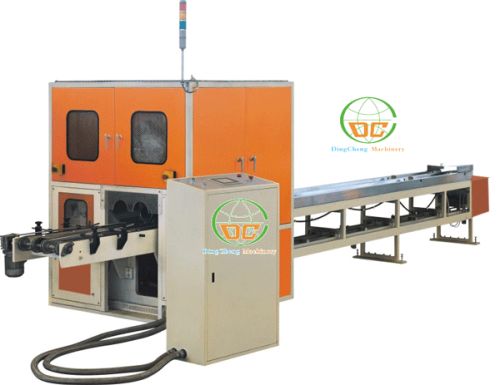

this machine is used to cut long toilet paper rolls and kitchen towel rolls into short rolls as the picture shown above. It is automatic type.
ii. Function and features
1. This machine is used to cut toilet paper and kitchen roll paper. It is easy to operate and runs at high speed
2. Adopt computer control production, reset automatically, cut, and wrap length, adjustable the period of cutting.
3.equipped with touch screen person-to-computer control, production parameter, production trouble can be shown on the screen.
4. 610mm diameter disc knife high speed revolving rapidly. (cut two roll paper at one time).without knife mark and rough edges while cutting.
5.equipped with advanced photoelectric checking system, advanced servo driving system, pneumatic element, bearing tool and other advanced products.
Equipped with feeding knife grinder, the grinding of knife blade is of high precision. It is safe and insures while grind the knife.
iii. Technical parameters
1. Paper roll length: 1200~2500mm (it is according to customers’ requirement)
2. Diameter of paper roll: φ90~φ130mm (the size could be depend on customers’ requirement)
3. Production speed: times of cut 80~100 times/min ×2 roll/time
4. Power 10kw (380v 50hz) (for your reference, it depends on the power situation in your place)
5. Overall size: 7.0m×1.5m×2.3m (l×w×h)
6. Weight: about 3 tons
