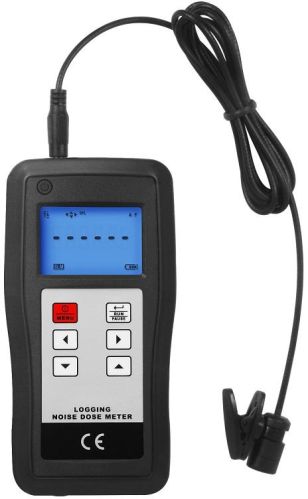

Logging Personal Noise Dose Meter SL-1256DOS, Power Source : Battery

Logging Personal Noise Dose Meter SL-1256DOS

1.Spec:

The personal noise dose meter is test equipment to evaluate the noise condition of working environment by measuring the accumulated noise exposure.

2.Features:

The Noise Dose Meter measure the frequency weighted noise exposures and peak sound levels simultaneously.

* Simple operation, including direct read–out of results.

* Eight built–in standard dose measurement setups : OSHA80, OSHA90, MSHA-80, MSHA-90, DOD, ACGIH, ISO85 and ISO90.

* Nine user – defined measurement setups.

* A single sound level meter (SLM) setup.

* 50 dose (DATA) result stores.

* Download of setups from PC to the meter.

* Keypad lock protects meter against accidental operation.

* Timers support pre–selection of measurement time and duration.

* Use USB data output to connect with PC.

The meter is ideal for quick on–site surveys and for monitoring personal noise exposure in accordance with European ISO or USA OSHA, MSHA, DOD AND ACGIH standards.

The meter is two overlapping measurement ranges : 60 – 130 & 70 – 140dB, A & C RMS weightings, Linear & C Peak weightings, Fast & Slow time weightings, and energy exchange rates (Q) of 3, 4, 5 & 6. In dose measurement mode, it display % dose, % dose projected for an 8 hour period, peak level and measurement duration.

For countries that are subject to European Union regulations or the equivalent ISO standards,   the   meter   measure   the   daily   sound   exposure   level   (LAeq,8hr,Pa2h according to IEC 61252, which is identical with the L EX,8h   required by ISO 1999), while for USA OSHA/MSHA regulations they measure the Time Weighted Average level (TWA).

3.Specifications:

Standard Applied: IEC61252, ANSI S1.25 – 1992 for dose meter and sound exposure meters. IEC 61672-1-2013 Class 2

Microphone: 1/2-inch electret condenser microphone with 31-inch integral cable

Display: Liquid Crystal Display

Measurement Ranges (Linearity and Indicator ranges at 4KHz): 60 – 130: 60 – 130dB (A and C); 70 – 140: 70 – 140dB (A and C)

Peak Ranges (C–weighted or Linear Peak over the top 40dB of each measurement range): 60 – 130: 93 – 133dB Peak; 70 – 140: 103 – 143dB Peak

Frequency Weightings: RMS Detector: A or C; Peak Detector: C or Z (Linear)

Time Weightings: Fast and Slow (RMS detector)

Exchange Rate: 3, 4, 5 or 6dB

Stabilization Time: 10 seconds from power on

Threshold and Criterion Levels (From the setup, predefined in the built – in setup according to applicable standards): User–defined setups in the following ranges:Level: 70 – 90dB in 1dB steps; Criterion Level: 80, 84, 85 or 90dB

Criterion Level: 80, 84, 85 or 90dB: At 0.1dB above the top of the selected measurement range

At 0.1dB above the top of the selected measurement range: Under–Range Indications

High Level Detector: 115dB

Keypad Lock: Lock and unlock by pressing key combinations: Up and right arrows to lock; left and down arrows to unlock

Clock: Real–time clock with calendar

Memory: Results from 50 measurements can be stored for later viewing and download

Measurement Control: Measurement Duration: May be set to 5, 10, 15, or 30 minutes or 1, 2, 4, 8, 10, 12, or 24 hours

Timers: Up to 16 timers(automatic start and stop)can be set(maximum up to one month ahead of measurement time)

Timer Controlled Started / Stop: Set up from the PC software or meter keypad

Logging: All measurement parameters values can be logged

Logging Period (LP): 1s, 2s, 5s, 10s, 15s, 20s, 30s, 1min, 2min, 5min, 10min, 15min, 20min, 30min or 60min

Logging Capacity: 120000 values can be stored at any one time

Setup: Eight built–in (predefined) default setups are included. Nine additional user–defined setups can be stored

Output: USB interface

Power Supply: 4x1.5V AAA Size (UM-4)Battery

Battery Indicator: Symbol indication battery voltage level in 4 steps. Indicator flashes when voltage is insufficient for operation

Operating Temperature & Humidity: 0–50ºC, 10–90%RH

Size: 140x72x34mm

Weight: Approx. 350g (including batteries)
