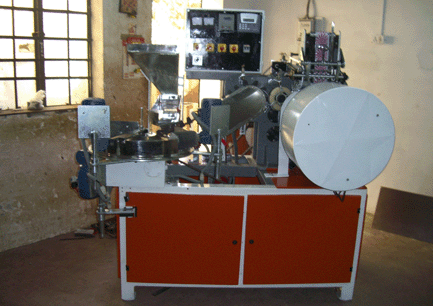

LOLLIPOP SINGLE TWIST WRAPPING MACHINE

It is fully automatic Photo cell PLC controlled Outputs 100 to 120 pops/min depending upon the products and the packing material.

The products to placed in the hopper through Vabratony feed the pops are fed in the revolving feeding disc, with the help of three rotating brushes, the pop sticker goes and sits in the clip type lug conveyor, which carries them is the twisting head, two proxy switches are install near this conveyor so that no pop, no paper

The packing material is fed from rear side, the scanning head senses the photo cell mark, a solenoid stop the paper driving roll, the rotary knife cut the paper and is placed properly before the pop. A rotary cradle take the pop and paper in the twisting head, where a small amount heat is applied so that the twist does not get re-opened

The fully packed pop ejected from the twister.
