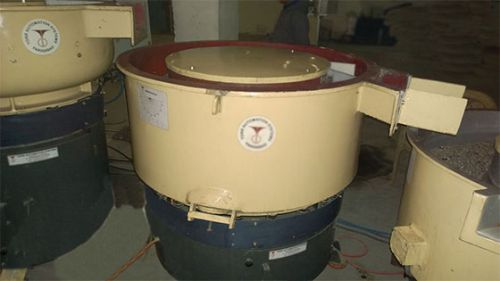

Contact SupplierThe LR concept offers a high degree of flexibility. Long radius machines can be used for in-line continuous processing and for batch processing. In batch processing, the machines are equipped with apneumatic separation flap. Batch processing in LR machines allows the processing of larger parts, with a minimum of part-on-part contact. Their main application is in-line, continuous-feed operation.Continuous-feed operation allows the LR machines to be placed directly into an in-line manufacturing process without having to invest in expensive batch loading equipment. In the continuous, single lap process, the Long Radius flow systems are ideal for fast deburring, edge breaking and radiussing.
| Model | Outside Diameters | 'U' Section | Depth U Section (Lowest x Highest) | Bowl Volume | Motor (HP) |
|---|---|---|---|---|---|
| TVFM-80 LR | 1026 | 136 | 93 x 407 | 80 | 0.5 |
| TVFM-160 LR | 1145 | 170 | 114 x 456 | 160 | 2.0 |
| TVFM-350 LR | 1766 | 250 | 275 x 865 | 350 | 5.0 |
