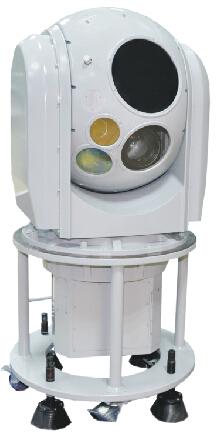

Long Range Electro-optic Search & Tracking System

We are offering long range electro-optic search & tracking system.
Application
applied to different moving carriers(such as aircraft, vessel and ground equipment ) , have functions of target search, observation and tracking, collimation control, navigation and early warning.
Technical specification
stabilization accuracy ≤0.2 mrad(1σ)
angular velocity(max) azimuth≥50°s, pitch≥50°s
auto tracking state target angular report accuracy random error ≤0.06mrad(1σ)
aiming line pointing stabilization accuracy random error ≤0.3mrad(1σ)
sensor specification(tv camera)
detector 752x582; 13inch bw ccd fov 18°×13.5°～1°×0.75°continuous zooming
optical axis parallelism in
the zooming process between lfov and nfov≤1 pixel
in the process of zooming≤4 pixel
laser range finder specification
wavelength 1.06μm repeat frequency 5hz(optional)
ranging accuracy ≤±5m accuracy ≥98%
laser transmitting collimated angle.
