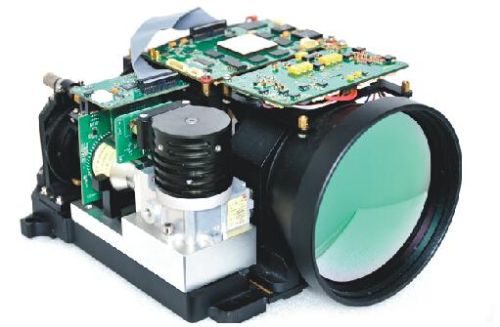

Long Range Observation Cooled Thermal Imaging Camera

We are offering long range observation cooled thermal imaging camera.
Feature
★the optical-mechanical integration design
★cooled fpa hgcdte microbolometer, low noise and high sensitivity.
★fpga intelligent image processing platform, high frame frequency and clear image.
★long focus and dual fields optical system, search and prewarning in the wide area and recognization and tracking in long range.
★long focus, large area array and small pixel make system with high ifov
★mechanical structure, electrical interface and communication protocol are designed according to system requirement.
Technical specification
detector cooled hgcdte fpa pixel 320x256( or 640x512)
pitch 30μm（15μm） spectral band 3.7μm~4.8μm
frame frequency 25hz ,50hz, 100hz,200 hz(only 320x256model)
integral time adjustable video output analog pn, digital camera link
power input dc+24v(dc8~42v optional) average dissipation ≤25w
optical focus 30075, 24060, 18045 starting time ≤6min(20℃)，≤8min（50℃）
fov
1.8°×1.4° 7.3°×5.8°（30075）
2.3°×1.8° 9.1°×7.3°（24060）
3.0°×2.4° 12.0°×9.6°(18045)
netd camera≤25mk(f2)
operating temperature -40℃ ~ +60℃ storage temperature： -50℃ ~ +70℃
communication interface rs232rs422 open protocol
weight 10.5kg(30075); 9.8kg(24060); 6.5kg(18045)
operating range
for example: 24060,15μm，nfov
visibility≥15km，temperature：20℃±5℃，relative humidity：70%±5%，temperature difference between target and background≥5℃.
ship aircraft vehicle
detection:25km detection:40km detect
