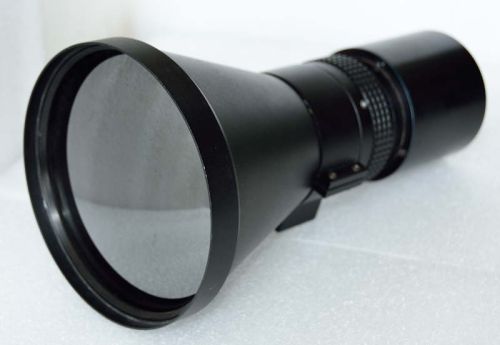

Long Range Observation Uncooled Thermal Imaging Camera

We are offering long range observation uncooled thermal imaging camera.
Application
provide high-performance and reliability thermal imaging camera for border&coast defense monitoring system, forest fire prevention system and urban monitoring system.
Feature
fully sealed waterproof, design and produce are according to the gjb navy environmental adaptability requirement.
Uncooled fpa vox microbolometer, high sensitivity.
New generation of fpga intelligent image processing platform.
dual-fields optical system, search target in wide area and recognize the important target.
Various control interface and image output interface, easy to integrate
wide power supply range, low dissipation and short start time.
Function
functions through the wireless serial port:
focusing, fields switch, manual backgroundshutter correction, whiteblack heat polarity switch, 2x electronic zoom, manualauto image gainbrightness adjustment, cross cursor displayhide and position adjustment, image enhancement, smoothness and sharpen,etc.
Automatic air to surface observation mode, without any operate to get best image.
system parameters self-checkreset.
Technical specification
detector uncooled vox fpa pixel 320x240( or 640x480)
pitch 38ã�â¼mã¯â¼ï¿½or 17ã�â¼mã¯â¼ï¿½ spectral band 8ã�â¼m~12ã�â¼m
frame frequency 25hz focus 150mm37.5mm
power input dc7~12v video output analog pn
starting time.
