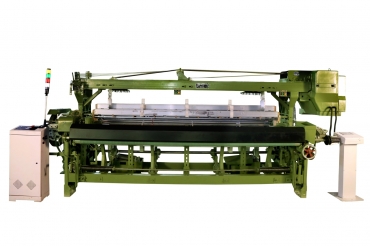

Looms Machine

Main Technical Parameters

Model: PLW 786

Width : 170, 180, 190, 210, 230, 280, 360 Cm

Type : Dobby Shedding, Upper cam Motion, jacquard Shedding

Extra Accessories

1. One control panel for machine and dobby - USD 950 set extra

2. Aluminum beam flange 800mm dia-USD 300 / set extra

Standard Accessories

Mechanical Let Off (Box Type)

Mechanical Continuous Take-up

2 Cloth Roll

2 Beam (Flange Dia 800mm, Plate type flange, beam pipe is close from both side, beam attachment support)

10000 Heald wire and dropper

Adjustable Back Rest

Leno Stand for 12pcs of leno bobin (3 pcs for 2 widths)

Spring type tension

Feeder tension (heavy & good quality)

Machine with front cover

Machine wall with spirical roller bearing (both side wall total 4pcs)

Crank shaft 45mm

Downside heavy wall

Double press roller

Motor big pully and big gear is heavy

Gripper box heavy (square type)
