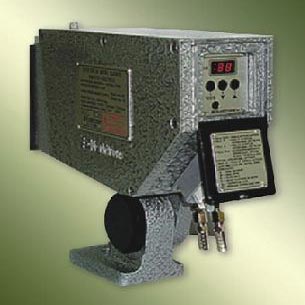

Loop Scanner

We are a prominent Exporter and Supplier of Loop Scanners in Canada. The Loop Scanners are used for measuring the amplitude of the gap of the material. The Loop Scanner is a device that measures the amplitude of the slack loop in the material, using a photocell sensitive to infra-red radiation emitted by hot metal as wires and plates, etc, whose temperature is higher than 250^oC. A digital output is provided on the basis of the presence of hot metal section and independent of the position of the metal within the "field of view". An analog output proportional to the sensed angular position of the metal is usually used to control the loop. The special design of the Loop Scanner is achieved using microcontrollers last generation, their communication interface RS485 (optional) and their robust construction make this photocell versatile and ideal for harsh environments such as those found in steel industries. Key Features Of Loop Scanners

• Angle of vertical field of operation : 0^o to 30^o HMD/LS-DI02760A and 0° to 50° HMD/LS-DI02760B
• Horizontal Field Angle : maximum 3^o (adjustable)
• Detection Sensitivity : "1cm2 to 4m distance to the steel temperature above 250^o C
• Response time for detection of material : £ 2 ms
• Automatic control sensitivity
• Sensitivity adjustment without trimpots
• External control for exchanging isolated sensitivity range for detecting low (Lo)> 400^oC and high (Hi)> 250^oC
• Four digital outputs solid state 0 / 24Vdc /0.1
• The optical isolation with respect to :
• Detection of the inverse product
• Direct detection of the product,
• Quality of the signal detected
• Failure : feeding, the internal cooling system in motor speed and operation of the microcontroller
• Relay output on the presence of the material: a reversible contact Amax x 5 to 250Vac (resistive load) with transient protectors
• Output voltage or current analog, programmable and adjustable trimpots without (0 to 10Vdc, 0-20mA and
• 4 to 20 mA, accuracy of ± 1% of range) proportional to the angular position of the hot metal within the field of measurement
• Command test panel and the connector for simulating the presence of hot metal by using infrared photodiode
• Serial communication interface RS485 with MODBUS-RTU (optional)
• Mira positioning with laser "line", activated by the test command
• Two LED displays 7-segment, 3 momentary contact switches and 2 LEDs located on the control panel, protected by a hinged cover, intended for programming, operation, and adjustment of detector sensitivity
• Power Supply : 110/220 Vac - 50/60 Hz <20VA
• Electrical connection made through robust connector "plug" male/female 15-way
• Supplied in cast aluminum housing
• Stainless steel tubing for water cooling, tilting hood for protecting the window glass when the use of compressed air to prevent entry of dust
• Easy to install, adjust vertical and horizontal extent of sealing : IP65
• Operating Temperature : 0^oC to 60^oC and cooling to 120^oC with cooling
• Dimensions : 464mm in length, 284mm in height and 100mm in width
• Weight : 8kg
