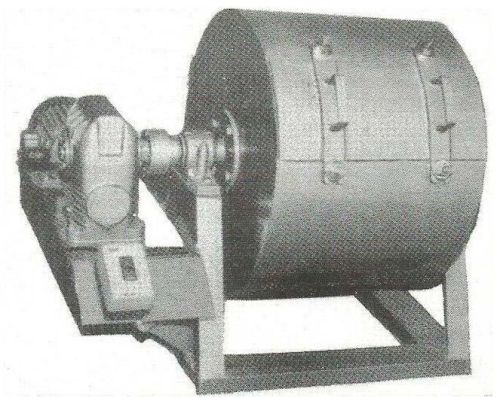

Los Angeles Abrasion Testing Machine

Los Angeles Abrasion Testing Machine is in conformance with IS: 2386-Part IV & ASTM C-131; AASHTO T-96. Los Angeles Abrasion Testing Machine comprises of a rolled steel cylinder having an inside diameter of 700mm. In addition, internal length of 500mm. A detachable shelf extending throughout the inside of the drum is fixed to avoid the abrasive charge from falling on the cover. Los Angeles Abrasion Testing Machine is connected to stub shafts and mounted on a sturdy steel frame to rotate about its horizontal axis at 30-33 RPM, through a reduction gear driven by a motor a tray is placed on the frame under the drum to collect the material after the test. Los Angeles Abrasion Testing Machine is supplied with twelve hardened steel balls of 48mm. Diameter and an automatic revolution counter, to count the number of revolutions. Wired for 440V. 3ph. 50Hz.
