Losses Due To Pipe Fittings Sudden Enlargement

we are offering losses due to pipe fittings sudden enlargement. study of pipe fittings

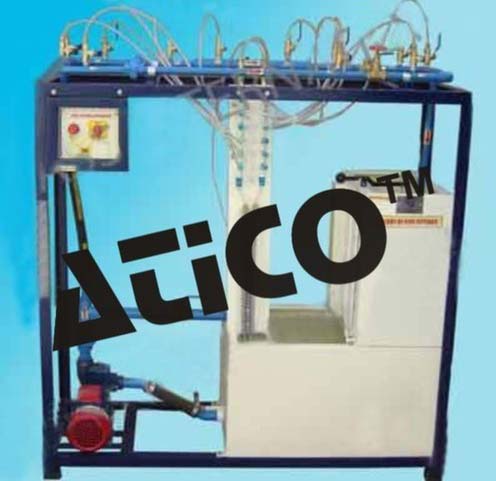

the set up consists of a 12 bend and elbow, a sudden expansion & sudden contraction fitting from 15mm to 25mm, ball valve and gate valve. pressure tapings are provided at inlet and outlet of these fittings under test. a differential manometer fitted in the line gives pressure loss of individual fittings. present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. flow rate of water is measured with the help of measuring tank and stop watch.
utilities required:
- electric supply 0.5 kw, 220v ac, single phase
- water supply tap water connection, distilled water @ 60 liters (optional)
- floor area with drain facility
technical details:
- product study of pipe fittings
- sudden enlargement from 15mm to 25mm
- sudden contraction from 25mm to 15mm
- bend
- elbow
- ball valve
- gate valve
- water circulation fhp pump, cromptonsharp make
- flow measurement using measuring tank with piezometer, capacity 40 ltrs
- sump tank capacity 85 ltrs
- stop watch electronic
- control panel onoff switch, mains indicator etc.
