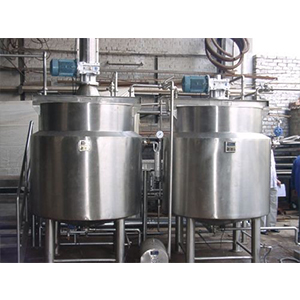

Low and High Shear Mixer

We pioneers in manufacturing the Low and High Shear Blending & Mixing Vessels / Tanks in Food & Pharma Industries.

The following type of Low and High Shear Blending & Mixing Vessels / Tanks are manufactured.

• Low and High Shear Blending and Mixing Tanks are available having the Volumetric Capacity of 500 Litres to 5,000 Litres. These Tanks can be single walled or with Dimple Jacket & with or without Insulation followed by Outer shell of SS 304 or MS depending Upon the specific requirement.
• These vessels are provided with Jet Mixers / Turbine type agitators for mixing, / High Shear Mixer / Pedal Mixer or Low shear Mixers with scrapper. One can have choice of having these vessels depending upon the requirement of various Food processing technology.
• Even it is possible to have these Vessels with two speed agitator cum scrapper moving in opposite directions.Provision can be made for two speed mixer.
• These vessels can also be supplied with Flat / Conical / Dished end bottom and top with loose / fixed cover.
• In case of Jacketed vessels the shell & Bottom are provided with the dimple jacket suitable for circulation of steam / hot / cold water.
• The dimple jacket Vessels are tested at 6 bar hence one need not use syphon for draining the liquid in the jacket. these jackets are suitable to work with on line supply of hot / cold water / steam up to a pressure of 4 bar
• However in case above standard designs are not suitable for particular requirement, one can very well ask to redesign the Vessels to suit individual requirement.
