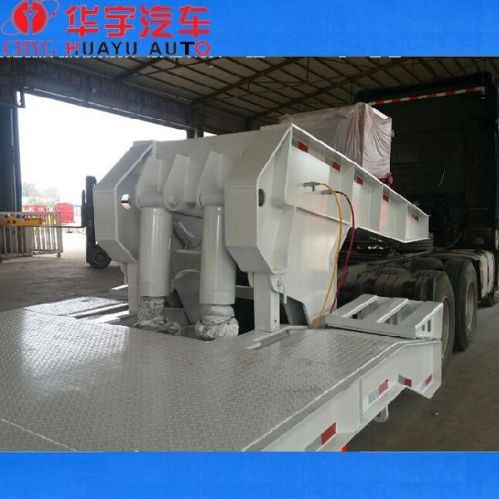

Low Bed Semi Trailer Goosneck Can Be Removable

₹ 23.53 Lakh / Piece

MOQ1 Piece(s)
Materialq345
Fuel Typeno
Horse powersuit for 370hp
Applicationmachine transport
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Shandong Liangshan Huayu Group Auto Manufactory Co. Ltd.

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Applicationmachine transport
Horse powersuit for 370hp
OEM No.NO
Fuel Typeno
Volume70cbm
Country of Originchina
Number Of FlowerLHY9409
Materialq345
Emission StandardISO 9001
Brand NameCHYG
axle3x13ton
ladderin the front
landing gearJOST C200
Size13000x3000x1300mm
suspensionamerican mechanical
wheel rim9.0-22.5
goosneckcan be detachable
tire12R22.5
kingpin3.5"
brake systemtwo air line
payload50tons
After-sales Service Providedprovide
ConditionNEW

CHYG lowbed semi trailer

Function

Machine transporting

Overall demension

13000x3000x1250mm( platform height:from the top of the floor to the ground)

Loading capacity

60ton

Main beam

(material :Q345)

Beam height :500mm

Upper plate:20mm

Down plate:25mm

Middle plate:14mm

Side beam

250#/300# U shaped steel

Traction pin

2/3.5 inch

Landing gear

Jost /fuwa/ standard 28t two speed

Fuwa/bpw/hj/L1/yuek 3x13ton the brand can be optional

Suspension type

Mechanical normal suspension

Leaf spring

10/10/10 (10X90X16mm)

Triangle/double star/chengshan/double coin/chaoyang 12R22.5 18PR 12pcs optional

Wheel rim

9.0-22.5 12pcs

Ramp/ladder width

Mechanical ramp .width :700mm hydraulic pressure type ramp can be optional

Plateform thickness

5mm checkered plate

Brake chamber

4 double 2 single

Tool box

Spare tire carrier

2 pcs

Side marker lamp

LED lamp

Electrical system

Chinese stand 24v

Air line and relay valve

Double air line ;WABCO/kangjian relay valve

Receptacle

7 ways(7 wires harnesses)

Marking

As Customer requirment

Accessories

Head wrech ;spare wheel crank

Details

Type	Semi trailer
Weight	4500kg-8000ka
Tare weight	30T-60T
Loading capacity	13T/16T
Axle weight load
Specification
Axle number	Two or three
Axle brand	Fuwa/hj/bpw
Suspension	Air suspension or mechanical suspension
Wheel	11.00R22.5/12.00R22.5 Vacunnm tire/Triangle or double cone brand
King pin	JOST 2.0 ``or “3.5``
Dimensions(LWH)	11500/1250025002700
Support legs	28Tons/JOSTD200T
Rim	8.2522.5/9.0022.5 Vacunnm tir zhengxing brand
Wheelbase	6750+1310+1310mm,6550+1310+1310
Steel spring	10/10/10pieces per axles
Twist lock	4 pieces
track	1840/1840/1840
Tire number	Can be choose freely
Spare tire carriers	2/4 pieces
Frame
Material of main beam	Material SSAB high stress steel .the height of the beam is 450/500mm,the uper and the down plate is 8mm,middle plate is 5mm
Side board	The height is from 600-1500mm
Platform plate	3mm flat plate
