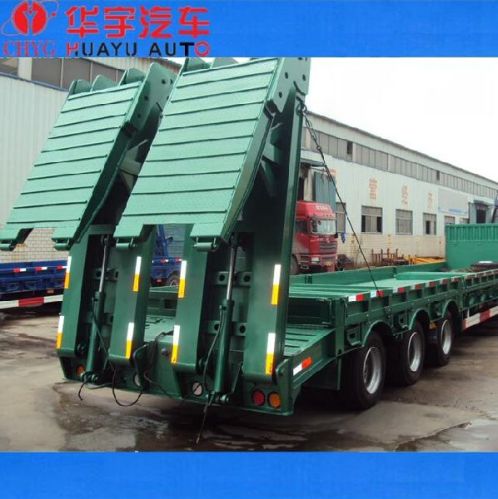

Low Bed Semi Trailer With Hydraulic Pressure Ladder

₹ 17.02 Lakh / Piece

MOQ1 Piece(s)
MaterialQ345
Fuel Typeno
Horse powerNO
Applicationexcavator
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Shandong Liangshan Huayu Group Auto Manufactory Co. Ltd.

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerLHY9409
MaterialQ345
Applicationexcavator
Horse powerNO
OEM No.opentional
Fuel Typeno
Volumepacking volume:70cbm
Country of Originchina
axle3x13ton
Size13000x3000x1300mm(board height)
air line2 air line
ladderhydraulic pressure
brake systemdrum
electricity24v LED light
suspensionamerican mechanical
After-sales Service Providedprovide
wheel rim8.0-20
Emission StandardISO 9001
kingpin3.5
floor5mm
Brand NameCHYG
ConditionNEW
landing gearJOST C200
tire11.00R20

CHYG lowbed semi trailer

Function

Machine transporting

Overall demension

13000x3000x1250mm( platform height:from the top of the floor to the ground)

Loading capacity

60ton

Main beam

(material :Q345)

Beam height :500mm

Upper plate:20mm

Down plate:25mm

Middle plate:14mm

Side beam

250#/300# U shaped steel

Traction pin

2/3.5 inch

Landing gear

Jost /fuwa/ standard 28t two speed

Fuwa/bpw/hj/L1/yuek 3x13ton the brand can be optional

Suspension type

Mechanical normal suspension

Leaf spring

10/10/10 (10X90X16mm)

Triangle/double star/chengshan/double coin/chaoyang 12R22.5 18PR 12pcs optional

Wheel rim

9.0-22.5 12pcs

Ramp/ladder width

hydraulic pressure ramp .width :700mm hydraulic pressure type ramp can be optional

Plateform thickness

5mm checkered plate

Brake chamber

4 double 2 single

Tool box

Spare tire carrier

2 pcs

Side marker lamp

LED lamp

Electrical system

Chinese stand 24v

Air line and relay valve

Double air line ;WABCO/kangjian relay valve

Receptacle

7 ways(7 wires harnesses)

Marking

As Customer requirment

Accessories

Head wrech ;spare wheel crank

Details

side wall semi trailer for hot selling
Total Weight	28000 kg
Rated Load	22000 kg
Tare Weight	6000 kg
Wheel Base	7180+1310+1310 (mm)
Tyre Specifications	10R22.5 10PR (Vacuum tyre or rail tyre)
No. Of the Tyres	12
Axle Brand	FUWA (BPW optional)
No. Of the Axles	3
Axle-load	20000 kg
Pieces of leaf-spring	10 (8)
Suspension	Independent stamping steel rigid suspension ( air suspension)
Departure Angle	14.5
Front/Rear Overhang	2100 mm
Outside Dimensions (LxWxH)	13000X2500X2990 (mm)
Interior Dimensions (LxWxH)	12820X2350X600 (mm)
Material of the Main Beam	Q235B manganese plates, automatic submerged arc welded
Brake System	ABS:CM2XL-4S/2K (optional )
Brake Air Chamber	Four double and two single chamber
Other Specifications	The max height of the rear guard from ground is 550mm, and the cross section is 140mmX55mm.
Usage	Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo.
Other Descriptions	The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flangeplates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding. Frame using peen-forming processing.
Side board	The height is from 600-1500mm
Platform plate	3mm flat plate
