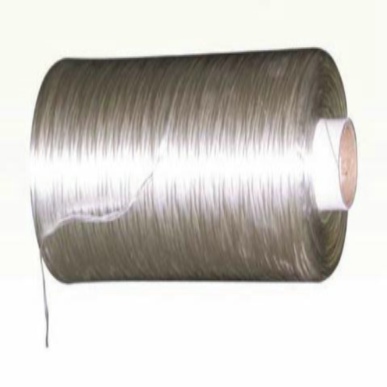

Low Dielectric Loss Glass Fiber

₹ 2,443.50 / 40 40 Square Meter

Featurelow dielectric
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Low dielectric loss glass fiber low dielectric names d glass fiber, have d3, dk series. It is low density, low dielectric constant and low dielectric loss. It is an ideal reinforcement for making....

Product Details

Low dielectric loss glass fiber
low dielectric names d glass fiber, have d3, dk series. It is low density, low dielectric constant and low dielectric loss. It is an ideal reinforcement for making light weight and high performance radomes with high wave permeability and wide frequency band and print circuit board etc..
Specifications d glass fiber
items d3 dk
density gcm3 2.30 2.30
strength of virgin filament mpa ≥2600 ≥2600
elastic modulus gpa ﹥55 ﹥55
dielectric constant 22℃10^10hz ≦4.5 ≦5.0
dielectric loss 22℃10^10hz ﹤0.0035 ﹤0.0035
d glass fiber fabric
specification d3 dk
thickness mm 0.22 0.22
weight gm2 210 210
breaking strength n100*25 warp ≥1350 ≥1450
weft fill ≥1000 ≥1050
