Low Frequency RFID Pda/handheld Reader

We are offering 125khz low frequency rfid pdahandheld reader
view larger image
displaying 11
displaying 11

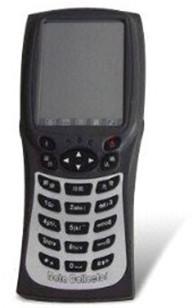

125khz low frequency rfid pdahandheld reader
item#: d-think_x20l
retail price: us$275.00
wholesale price: us$€
¥
275.00
start from: 1 unit(s)
manufactured by: d-think technologies,inc.
weight: 0.5 kg(s)
qty.range(unit) price(per unit) discount
1-9 us$275.00 no
10-99 us$247.50 10%
100-499 us$233.75 15%
500-999 us$220.00 20%
1,000+ us$211.75 23%
description:
d-think x20 series are handheld rfid readerwriter with high reliability, low power consumption, miniaturization and modular design features, it can work offline or online and provides function-rich software interface as well as hardware resources. With convenient and practical applications software development platform, it runs on fully functional wince operating system and the windows-based integrated development that offers customers the best flexibility to meet their software solutions for specific needs.
d-think x20 series rfid reader with 3.5-inch colored tft-lcd and 320x240 pixels is the new generation of flexible, easy to program and expandable handheld pda, automatic identification data capture as well as intelligent data processing terminal. It is designed to improve the management efficiency and reliability of the products and related information in the fields of which needs products identification,data collection and information login.
parameters
cpu
intel xscala
frequency
300mhz
operating system
microsoft pocket pc 2003 simple chineseenglish
secondary development
evc,c#,vb.net
flash rom
32m
sdram
64m
expansion
sd card
lcd display
3.5-inch color tft-lcd 320x240 pixels
touch screen
with
keyboard
4 keys
ergonomic design, operated by both hands or single hand,high durability hard keys
buzzer
with
real-time clock
with
physical interface
usb, portable base connector , connector: usb device port, usb main port, power supply
audio interface
2.6mm stereo headphone jack, speaker and mic interface
sd interface
standard sd card interface, expandable high-capacity sd card
support sd card and sdio functions; read and write sd card steadily, support sd wlan card function(wi-fi)
13.56mhz
support multiple isoiec14443typeacard:mifare one s50,mifare one s70,mifare ultra light, mifare pro, mifare desfire,shc1102
support multiple isoiec14443typeb card:trh1064,sr176,sirx4k,at88sf020
support multiple isoiec15693 card: i.code sli, tag it
125khz
support multiple 125khz cards:em4001,em4100,em4002,t55575567,em4469,em4569,em4305,hitag-s
134.2khz
is1178411785&compatibility
433mhz
support reading tags of 433mhz
sam
support sam card
readwrite distance
1-6cm
read speed
about 0.30 second
wifi
sd wlan card function (wi-fi)
irda
casio original protocol1200bps-19.2kbps
standby time
>200 hours
working time
>8 hours
battery
1300mah
recharge time
40 minutes
working status
rfid 0.4w
system
0.3w
background light
0.36w
outlook size
114mm(l) * 72mm(l) * 27mm(h)
weight
about 150g
production process
surface-mount technology
color
black
operating temperature
-10°c~50°c
storage temperature
-20°c~70°c
humidity
0%~95%( non-condensing)
model notes (o: optional)
d-think_x20a
d-think_x20h
d-think_x20l
d-think_x20z
d-think_x20m
iso 14443a
√
√
iso 14443b
√
iso 15693
√
iso 117845
√
125khz rfid
√
433mhz rfid
√
433wireless communication
o
o
o
o
o
