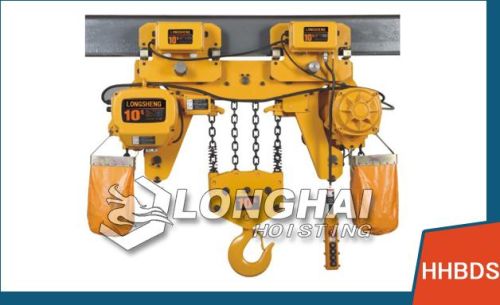

Low Headroom Electric Chain Hoist, Packaging Type : yellow

Low Headroom Electric Chain Hoist HHBDS type is a typical tool of low headroom structure specially designed for shortening the distance between the machine body and the beam tracks, applicable to operations inside relatively low buildings or on the sites where expansion of effective hoisting spaces is required.
Low Headroom Electric Chain Hoist Capacity:1-4 ton
Low Headroom Electric Chain Hoist Lifting Hight：39 m
Low Headroom Electric Chain Hoist Brand:LONGSHENG®
Low Headroom Electric Chain Hoist Warranty: 12 months
1,Load capacities from 1 to 10 Ton,headroom as low as 480mm.
2,With dual brakes, motor brakes and mechanical brakes, to insure that the load is always
stopped when the control button is released.
3,Motor body is constructed of  aluminum for light-weight and easy handling.Special fins
is added for better heat dissipation, 40% quicker than the thermal performance of
ordinary steel housing
4,All models are equipped with Up and down limit switches.
5,Grade 80 Chain,for 4X the rated load,surface treatment of carbon black.
6,Reverse phase protection: when wiring wrong, the motor does not start.
7,The up hook and the down hook are manufactured by forging production process,
breaking force of 4 times. The down hook can be rotated 360 degrees.
8,Protection class: IP54 dust and waterproof level.
9,Insulation class: F
10,The number of chain,single or double speed could be chosen,depending on Customized
Demand.
