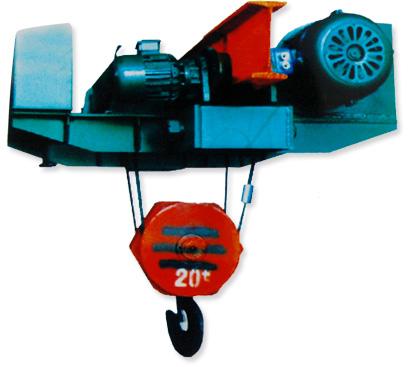

Low Headroom Wire Rope Electric Hoists

We offer low headroom wire rope electric hoists.
Power source electric
sling type wire rope
maximum lifting weight 20t
maximum lifting height 18m
lift speed 8m/min,7m/min,3.5m/min
main electric system: siemens brand
lifting capacity: 16~50t
painting color: according to your demand
industrial voltage: according to your demand
current overload limit: include
weight overload protection device: include
emergency stop system: include
gb/t 19001-2000 idt iso 9001:2000: pass
gb/t 28001-2001,ohsas180011999: pass
gb/t 24001-2004 idt iso140012004: pass
detailed product description
1.choose crane hometown products 2.choose high-end products with top assembly 3.high efficiency,low maintenance 4.iso fact
specifications
low headroom wire rope electric hoist
  basic parameters:
1.capacity 1-20tons2.lifting height 6-18m 3.speed:single or dual4.voltage:220/380/400/415v5.pendent control or wireless
this type wire rope electric hoist is improved from cd and md model electric hoist,the working conditions are same as cd and md model, it increases more lifting room and can save construction cost of workshop.
 this type wire rope electric hoists could be installed on the straight or curved I type steel beam of single girder overhead cranes/gantry crane,jib crane to lift heavy objects,the wire rope electric hoists are widely used in industrial and ore enterprises, railway, wharf and warehouses.
