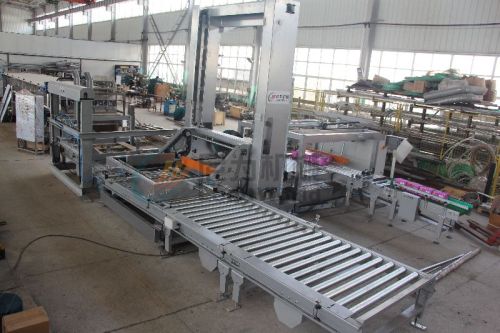

Low Level Palletizer

LW palletizers series of palletizer is used for food and beverage, chemical industry, etc.; It is suitable for all kinds of cartons, plastic boxes, the stretch film and barrels, and other types of packaging's stack , Machiner is made of different speed of belt, Steering mechanism Sorting box Area Carton Pallet Are main part lifting mechanism Pallet output roller line etc.
Main Feature :
Machine frame is adopt welding way. Strond and durable, base is adjustable. the main lifting platform adopt the SEW motor drive, entry adopt accelerate conveyor to separate infeed case, stack pushing area adopt roller conveyor, 2.5m stack output, free roller conveyor, use the safety protection device, adopt Germany Siemens PLC control system, man-machine interface, portable fault automatic display
Working process :
Automatic running process is separated into carton input automaticlly, carton turn automaticlly, section automatic, palletizer, palletize moving, palletizer lift, stack input, palletizer come down, palletizer output, all can finish automaticlly.
Equipment specification :
Automatic servo palletizer ‘s frame is delicate and cabinet, small footprint, small noise and pollution; adopt four shaft servo control, pallet form clear and beautiful. Apply to cartons, film bag, plastic crate products such as pallet, application in food, condiment, beverage, cosmetic, pharmaceutical, electronics and other industries. Adopt panasonic servo motor, Siemens PLC, danfoss frequency converter, SMC pneumatic components, ensure the reliability of the system hardware.
Feature :

• Touch screen operation accomplish the man-machine dialogue, using the Siemens PLC  to control number of carton sequence stacking, pallet supply and discharge can be programmed and controlled.
• the symmetry and compact structure design, suitable for the narrow space of the existing production sites.
• Pallet stroage is big, can load 15 empty pallet, can supply empty stack automaticlly.
• No need change any stacking parts, can finish several kinds of stacking way. Only need choose the suitable parematers will be ok.
