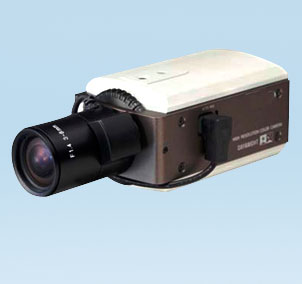

Low Light CCTV Camera

We are capable of handling both automated inbound and outbound consignments, we have excellent warehousing solutions available. We keep the extensive array of products sorted to make sure that the delivery commences thoroughly. We have a sound payment policy. Following it, we maintain transparency and only use methods that are safe, secure, and legal. Our clients can choose out of number of options as per convenience.

Features

• High Resolution Over 550TV Lines
• Mechanical Day & Night switching from CCD
• On Board OSD
• Pelco-D Protocol via RS-485
• Supports C/CS mount lenses,
• Dual Voltage (Lens Not Included)

Specifications

• Image Device - SONY 1/3" Super HAD CCD.
• Total Pixels - 811(H) x 508(V).
• Effective Pixels - 768(H) x 494(V).
• Horizontal Resolution - 550 TV Lines.
• OSD Available.
• Sensitivity - 0.5 Lux @ F 2.0 / 0.05 Lux @faceplate ( EXview HAD CCD).
• Scanning System - 2 -1 Interlace.
• Electronic Shutter - NTSC - 1/60 ~ 1/100,000sec Auto.
• S/N Ratio - More than 45dB (AGC Off).
• BLC ON/OFF (Level adjustment, Area selection).
• AGC MIN / TYP / MAX.
• White Balance - ATW/ PUSH/ USER (R GAIN, B GAIN).
• Day & Night Mechanical Day & Night (CDS sensor).
• Sync System Internal (DC 12V) Internal/Line Lock (AC POWER).
• Video Output Composite 1[Vp-p] 75(Ω) unbalanced.
• Power Supply DC12V (±10%) / AC 24V (Dual).
• Operating Temperature -10^oC ~ +50^oC (Humidity - 10%RH ~ 60%RH).
• Storage Temperature -20^oC ~ +60^oC (Humidity - 10%RH ~ 60%RH).
• SONY EXview HAD CCD for low light sensitivity (KPC-EXDN4000NH), Remote Keypad for OSD control (KA-08C).
• Pelco-D via RS-485.
