Contact SupplierMini b/w hi-res low lux camera with 0.0003lux
detailed specifications of the parameters
model cs-n120bhexp4(3.7mm super cone pinhole lens)
image device 1/3" sony b/w ex-view ccd
horizontal resolution 600tvl
minimum illumination 0.0003lux
effective pixels ccir:(h)752x(v)582; eia:(h)768x(v)494
scanning system pal: 625 lines, 50 field/sec; ntsc: 525 lines, 60 field/sec
s/n ratio more than 48db(agc off)
electronic shutter ccir:1/50 ~ 1/100,000sec eia:1/60 ~ 1/100,000sec auto
gamma characteristic 0.45
white balance auto
lens option pinhole lens, board lens, wide angle lens, vari-focal lens available
blc auto
agc auto
sync system internal synchronization
video output 1vp-p 75 oms , negative
power consumption 12v±10%dc, 50ma
operation temperature -10℃ ~ + 50℃, rh 95% max
storage temperature -20℃ ~ + 60℃, rh 95% max
housing black
dimension 20x20mm, 1 boards
weight 50g

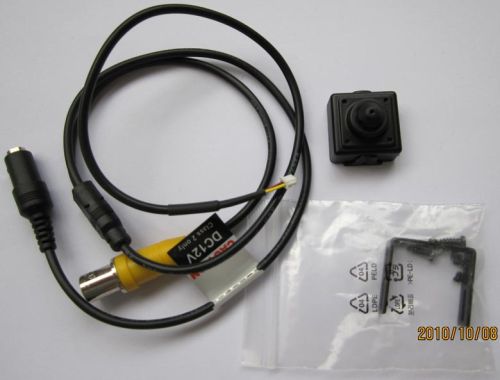

supplied accessories user manual,cable,screw,bracket.
