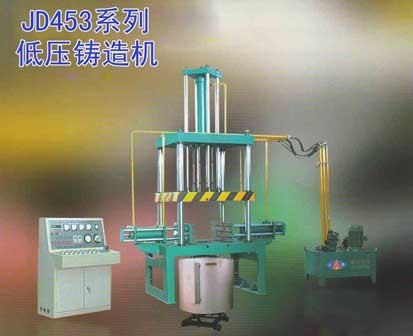

Low Pressure Casting Machine

MOQ1 Set(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering low pressure casting machine, over 20 years factory,own the domestic first-class team and professional design team,integrating production ,sales and after-sales ,own exporting....

View More Details

Send Enquiry

Product Details

We are offering low pressure casting machine,
over 20 years factory,own the domestic first-class team and professional design team,integrating production ,sales and after-sales ,own exporting license,high quility products,competitive price,oem,timely delivery.
technical parameters:
1. Furnace capacity(furnace hearth)(kg): 300.
2. Furnace power: 40kw
3. Size of control cabinet: 600mmx900mmx1600mm
4. Machine dimensions: 4800mmx3400mmx1000mm
5. Machine weight: 8.5 t
6. Opening cylinder; minimum stroke: 500mm
7. Opening cylinder; maximum stroke: 1100mm
8. Working voltage of equipment: 380v
9. Closing cylinder: stroke: 600mm
10. Hydraulic equipment power: 7.5kw
11. Hydraulic system pressure(mpa): 12
12. Hydraulic oil type: 46#
13. Opening cylinder diameter(φ ): 200
14. Maximum opening force: 30t
15. Maximum closing force: 25t
16. Effective worktable: 1000mmx1000mm.
