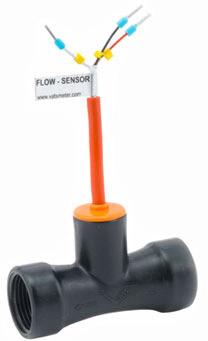

Low Pressure Mini Turbine Flow Sensor

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The LP-30 Turbine Sensor is a G.F body Mini Sensor suitable for Low pressure Application, and general purpose device.LP-30 provides simple pulse output in proportion to supply voltage and fluid....

View More Details

Send Enquiry

Company Information

Vatturkar Industrial

Shivane, Pune, Maharashtra

View Number

Member Since 17 Years
Nature of Business Manufacturer
GST No. 27AAMPV5410D1ZO

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

The LP-30 Turbine Sensor is a G.F body Mini Sensor suitable for Low pressure Application, and general purpose device.
LP-30 provides simple pulse output in proportion to supply voltage and fluid flow which makes interfacing easy.
It is developed for measuring regulating or metering and guarantees most precise measurement of fluid quantities. Compact package and light weight design to suit the growing needs of Low flow measurement of liquid in Industry.

Features:
• Suitable for Low Pressure Industrial Application.
• Lower installation and maintenance cost.
• High Accuracy
• Light Weight and Compact design.
• Cost effective.
• High reliability and durability.

Applications:
• Water Treatment
• Agriculture
• Textile
• Paper and Pulp
• Food and Beverages

Technical Data		Electrical Connection Ratings		Material
Flow Rate:	2.5 to 40 LPM	Supply Voltage:	12 - 24 V DC	Sensor Body:	G.F 30 %
Linearity:	+/- 1 %	Output Voltage:	12 - 24 V DC	Paddle:	G.F 30 %
Repeatability:	+/- 0.5 %			Retainer:	G.F 30 %
Temperature range:	Upto 50o C			Bearing Bush:	Ceramic
Pressure range:	Upto 3.5 bar			Pin:	T.C
End Connection:	3/4" BSP Female
