Low Profile Magnetic Drilling Machine

Low profile magnetic drilling machine From Euroboor BV.Holland

Part number: Eco.35F

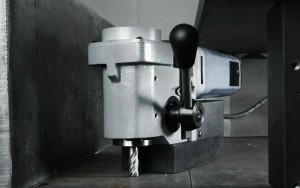

This handy ” low profile magnetic drilling machine ” with 21 cm height  able to drilling in low height areas of steel structures. The best features of over load protection and cool lock release for both forward reverse drilling functions enables steel workers to finish the job easily.

Specifications

ANNULAR CORE CUTTERS : ø 12 – 35 mm

LENGTH : 285 mm
WIDTH : 101 mm
HEIGHT : 210 mm
STROKE : 55 mm
WEIGHT : 10 kg
ELECTRO MAGNET (L x B) : 165 x 80 mm
MAGNETIC FORCE : 1500 kg
POWER : 1100 W
SPEED (no load) : 650 min-1
SPEED (load 1100 W) : 390 min-1
SPINDLE : 19,05 mm Weldon
VOLTAGE : 110 – 120 V / 50-60 Hz
: 220 – 240 V / 50-60 Hz
