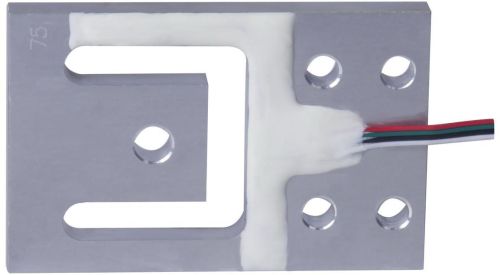

Contact SupplierWe are offering low profile platform scale load cell.
Features
material:aluminum alloy
very low profile
matched output
mainly used for low profile infant and adult medical scales,low profile platform scales,personal scales,airport baggage scales,postal scales etc.
Specifications
rated loading:30kg~300kg
dimension:w2*t*70
rated output:(1.0-2.0)±10%mvv
zero balance:±0.1mvv
non-linearity:±0.05%of r.o.
hysteresis,repeatability:±0.05%of r.o.
creep in 2 min.:±0.05%r.o.2min
temp. Effect on output:±0.05%r.o.10℃
temp. Effect on zero:±2%r.o.10℃
input resistance:1130±20ω
output resistance:1000±10ω
safe overload:150%.r.c.
insulation resistance:≥2000mω
operating temp. Range:-10to+40℃
excitation,recommended:≤10vdc
cable,length:four color pvc:φ0.8mm*60cm.
