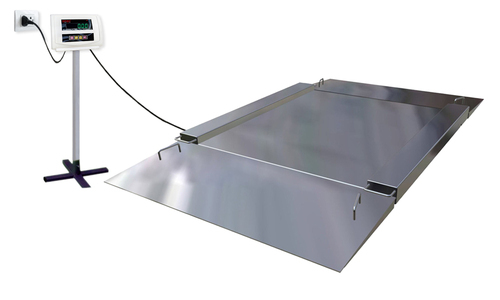

Low Profile Platform Weighing Scale

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Samurai Technoweigh India offers both low profile and portable scales for applications where required. The platforms’ ultra-low profile simplifies the job of moving loads onto and off the scale....

View More Details

Send Enquiry

Company Information

PUNIT INSTRUMENT

Naroda, Ahmedabad, Gujarat

View Number

Member Since 16 Years
Nature of Business Retailer
GST No. 24ADPPV0858B1ZF

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Samurai Technoweigh India offers both low profile and portable scales for applications where required. The platforms’ ultra-low profile simplifies the job of moving loads onto and off the scale quickly, safely, and easily. Optional ramps are available to eliminate the need for lifting loads onto the platform. Samurai Technoweigh India portable scales setup quick and easy. Simply move the scale where you want it, lower the ramps, and start weighing.

Technical Specification:

Frame Work Stainless Steel or MS
Platter Stainless Steel or MS
Load Cell 4 No. Single handed Shear Beam
Load Cell Type Tool Steel IP-67
Junction Box
Display Green LED
Weighing Area 1500 X 1500mm
Weighing Area height is 50-60mm from the ground label
Material Movement will be 1500mm side
Pole is not attach to the platform
Single side Ramp 1500 X 500mm
Platter will be welded one, since single sheet not available
Only Distributed /Even load should be applied on the platform

Application:

Pharma Industries
Food Industries
Chemical Industries
Freight Industries
Cargo Industries

Model No.	Capacity	Accuracy	Platform Size	Ramp Size
STIP	1000kg	100g	1500x1500mm	1500x500mm
STIP	2000kg	100g	1500x1500mm	1500x500mm
STIP	3000kg	100g	1500x1500mm	1500x500mm
STIP	5000kg	100g	1500x1500mm	1500x500mm
