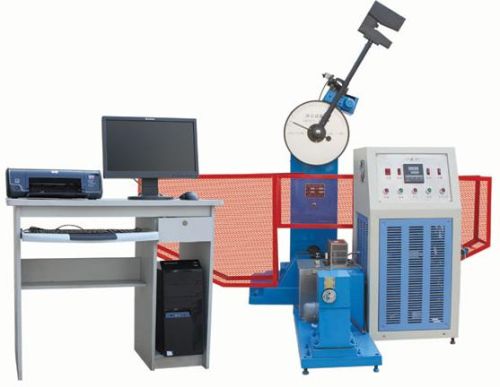

Low Temperature Automatic Impact Testing Machine

We are offering low temperature automatic impact testing machine
pendulum impact testing machine is used to test anti-impact performance of metal material under dynamic load to judge the quality of material under dynamic load. This series of impact testing machine mainly include automatic impact testing machine and semiautomatic impact testing machine.they are easy to operate and high effective. Raising pendulum, impact and pendulum dropping are all controlled by electorial equipment.they can make use of spare energy to raise pendulum automatically and be ready for next impact test.automatic impact testing machine also include room-temperature impact and low-temperature impact for client�s requirements.this impact testing machine satisfies gb/t3808-2002(test of pendulum impact testing machine) and does impact test with metal material according to gb/t229-2007 (metallic materials-charpy notch impact test).besides, it also can satisfy american standards and european standards, like astm e23-02a, en10045, iso83 and other international relative standards.
this impact series testing machines adopt large torque clutch and high-power motor to make the equipment more stable and no vibration when taking pendulum and releasing pendulum.
clutch torque force 630n.m 1000n.m
impact energy 300j 150j 500j 250j
value of every grid 2j 1j 5j 2.5j
moment of pendulum 160.7695n.m 80.3848n.m 267.9492n.m 133.9746n.m
impact speed 5.2m/s 5.4m/s
distance between center of pendulum and sample center 750mm 800mm
angle of pendulum rising in advance 150°
span of supports 40mm
jaw fillet of support r(1.0~1.5)mm(1mm is special order)
fillet of impact blade r(2.0~2.5)mm(8mm is special order)
included angle of impact knife 30°
thickness of impact knife 16mm
dip angle of supporting surface of supports 11°
mode of refrigeration compressor or liquid nitrogen
temperature range 0°c ~ -80°c or 0°c ~ -196°c
specification of specimen (10,7.5, 5.5)x10x55mm
speed of delivery ≤4s
capacity of sample box 10
size of host (l×w×h) (800×500×1275)mm
supply and power alternating three phrases five wires 380v 50hz 250w
2.5kw (compressor refrigeration)
0.5kw (liquid nitrogen refrigeration)
advantages
the host of this machine adopts casting steel material can make the equipment run steadily at the whole process of test and get more accurate result.
part of refrigeration adopts imported compressor or independent adding pressure type stainless steel liquid nitrogen tank.
after completing low-temperature test, impact testing machine delivers samples to impact automatically. The only process only needs less than 4 seconds. It improves working efficiency and accuracy.
then host is plc automatically control, which has high stability and strong anti-interference ability.
this machine adopts large torque clutch and high-power motor, which make equipment stable and no vibration in taking and putting pendulum process.
computer control and all the results of test can be saved in computer, be printed and be upload.
