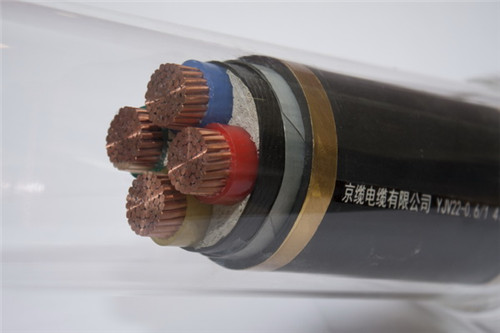

Low Voltage Cable

We are offering low voltage cable.
Parameters of low-voltage cable
1: standard gbt 12706.1-2008
2: detailed description
① conductor: compacted or un-compacted copper or aluminum
② insulation: cross-linked polyethylene or polyethylene
③ filler: filler yarn
④ packaging: wood shaft or packaging bag, depending on your requirement
⑤ outer sheath: polyethylene
⑥ armoring: fine steel wire armoring or steel tape armoring
3: standard sectional areas: 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.
Type name application
yjv
yjlv cross-linked polyethylene-insulated, pvc-sheathed power cable
cross-linked polyethylene-insulated, pvc-sheathed aluminum power cable be laid indoors or outdoors, can bear certain pulling force, but cannot bear external mechanical force.
Yjv22
yjlv22 cross-linked polyethylene-insulated, steel tape-armored, pvc-sheathed power cable
cross-linked polyethylene-insulated, steel tape-armored, pvc-sheathed aluminum power cable be applicable to direct burying underground, and can bear certain external mechanical force but cannot bear large pulling force.
Yjv32
yjlv32 cross-linked polyethylene-insulated, fine steel wire-armored, pvc-sheathed power cable
cross-linked polyethylene-insulated, fine steel wire-armored, pvc-sheathed aluminum power cable be laid in rainwater or in the area with high drop, and can bear external mechanical force and equivalent pulling fore.
Note: add zc to the original model of flame-retardant cable of the company, nh to fire-resistant cable, and wdzn to low-smoke, halogen-free, flame-retardant and fire-resistant cable.
