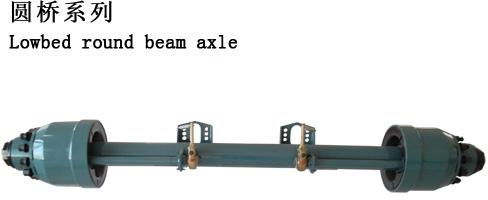

Lowbed Trailer Axle, Capacity : 10ton, 12ton

Round Beam Axle For Lowbed trailer
Product Description:
1. Good price for this style trailer American style ROUND beam
axle.
2. Best quality for trailer axle.
3. Round or square beam.
Technical Parameters of Axle (low bed)
Model No. Capacity
(T) Brake
(MM) centre distance of brake chamberL4 Axle Tube
(MNM) Tube thickness centre distance of spring seat L3 Stud P.C.D
D1
Hole
Diameter
D2 Track L2(MM) Bearing
Inner Total Length L1(MM) Weight
(KG) Recommended Wheel
ZY-A1071 10 311*190 ≥1000 Φ127 10mm 1000 10*M22*1.5 225 176 1850 HM51844510 ≈2166 ≈275 6.5-16
ZY-A1072 12 311*190　 ≥1000 Φ127 12mm 1000 10*M22*1.5 225 176 1850 HM51844510 ≈2166 ≈275 6.5-16
Characteristics of the products as follow:
1) superior one piece axle tube, strong carrying capacity and high bending strengh
2) the axle head is processed by the method of hardening and heat treatment, it can provide anti- fatigue and durable capability
3) the brake lining is environment friendly, non-asbestos and long life-expectancy.
4) the bearing is high rotate speed, abrasion resistant and heat resistant
5) wheel hub and brake drum use internatonal standard materials of ball iron and grey iron seperately, which has the advantages of over loading capacity, abraion resistant and heat resistant
6) key parts are produced by digital equipment, we can produce according to customer's special requirements
