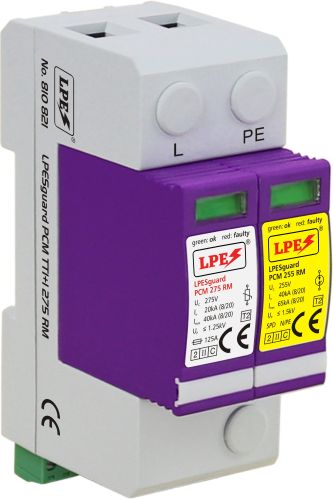

    Lpe Bt PCM TT1+1 275 Rm Power Surge Protector

    Lpe Bt PCM TT1+1 275 Rm Power Surge Protector

    Get Latest Price
    • MOQ100 Piece
    • Brand NameLPE
    • CertificationCE
    • Cross-sectional Area1.5mm² - 25mm² solid / 35mm² flexible
    • Max. Back Up Fuse125A gL/gG (L-N)
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    LPES Internationalverified-icon
    location Sector 47, Gurugram, Haryana
    View Number
    • calendar Member Since 1 Year
    • building Nature of Business Manufacturer
    • gst icon GST No. 06AAICR2536D2ZL

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Brand NameLPE
    • CertificationCE
    • Max. discharge current (I max ​ ) (8/20 $\mu$s)40kA (L-N), 65kA (N-PE)
    • Operating temperature range (T U ​ )-40°C ... +80°C
    • Art.-No.810 821
    • Dimension2 Modules
    • Lightning impulse current (10/350 $\mu$s)0kA (N-PE)
    • Max. Back Up Fuse125A gL/gG (L-N)
    • Cross-sectional Area1.5mm² - 25mm² solid / 35mm² flexible
    • Type of Remote Signalling ContactSwitching Contact
    • Enclosure MaterialPurple (module) & light gray (base) thermoplastic, UL94-V0
    • Voltage protection level at I n ​ (U p ​ )≤1250V (L-N), ≤1500V (N-PE)
    • Rated voltage (max. continuous voltage) (U c ​ )255V (N-PE), 275V (L-N)
    • Switching capacity (U n ​ /I n ​ )AC: 250V/0.5A; DC: 250V/0.1A, 125V/0.2A, 75V/0.5A
    • Response time (t A ​ )≤25ns (L-N), ≤100ns (N-PE)
    • Voltage protection level 5kA (U p ​ )≤1000V (L-N)
    • Mounting on35mm DIN rail
    • Test StandardsIEC 61643-11; GB/T 18802.1; YD/T 1235.1
    • Cross-sectional Area for Remote Signalling ContactMax. 1.5mm² solid / flexible
    • Nominal discharge current (I n ​ ) (8/20 $\mu$s)40kA (N-PE), 20kA (L-N)
    • Follow current extinguishing capability at U100A (N-PE)
