LS-052A Level Switch

Our organization is avidly engaged in supplying an exclusive range of LS-052A Level Switch at reasonable prices. We ensure; our whole range of products is manufactured utilizing finest grade supplies procured from only leading vendors.

Description :

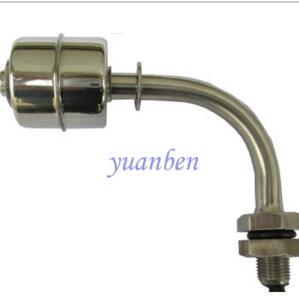

• LS level switch is consisting of a magnetic float, unit stem with magnetic reed switch, the magnetic float moves with liquid level to actuate a hermetically sealed magnetic switch within the unit stem.
• The level switches usually used for high or low alarm vessels. Since technologies of the product have more and more advance, the products need comply with a requirement for more safe, convenient and low cost.

Features :

• Safe control;
• Small size, reliable and stable;
• Easy installation and adjustment;
• Long service life, explosion proof and anti-corrosion.

Applications :

• Float level switch are used in civil building, waste water treatment, water purification industry for level measurement of oil, water, waste water, acid, alkali medium.
• Float level switch are widely used in household appliance, such as automatic washing machine, water dispenser, boiler, etc for level monitor.
• Float level switch are used as telecommunication control unit for liquid level control in automobile industry and industrial equipment.
• Float level switches can also be used in steel rolling plant, agricultural equipment, refrigeration plant, medical treatment and water treatment, etc.

Product Dimension :

• For the single point level switch, reverse the float ball end face will change the N.O or N.C switch mode.
• There are no user-serviceable components, and the location of the float retaining rings must not be changed. If service or repair is required, call for a return authorization.
• Failure to observe the following instructions may result in leakage.

  • Apply pipe thread sealant to male level switch threads.
  • Thread level switch into female coupling until hand-tight.
  • Using a suitable wrench on hex flats, tighten 1 to 2 additional turns past hand-tightness.
