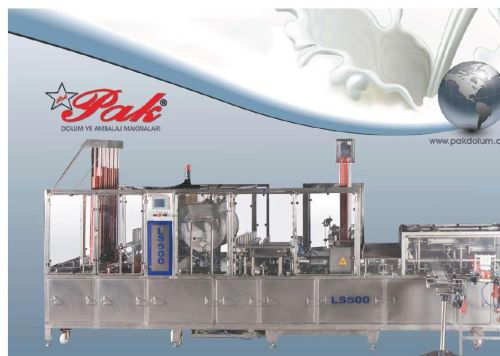

Contact SupplierWe are Offering Ls 500 Filling Sealing Capping Machine.
type : Ls 500 – Plc
type of Bowl : Sample Bowl Upon Demand
bowl Handling System : Automatic By Pneumatic System
uv Lamp System : Uv Field Before Filling
bowl Washing : Bowls are Sterilized Before Filling Upon Demand
filling System : Volumetric System
capacity : 6000 Bowl/hour (min.)
adhesion Agent : Aluminium Foil Truncated Ø 75 Mm, Lacquered
adhesion Agent Placing : Automatic By Pneumatic System
adhesion System : Hot Sealing
adhesion Time (approx.) : 1 – 1.2 Sec. (max)
adhesion Temperature (approx.) : 160 – 180 C ( May Vary Due to Ambient Temp.)
type of Cap and Capping System : Bowls and Caps Fiited to Machine Operations,
automatic By Pneumatic Systems
protection Frame : Stainless Steel/ Plexy Glass
machine’s Block : Aisi 304 Stainless Steel
electrical Demand : 380 V, 3 Phaze, 50 Hz
pressured Air Demand : 7 Bar – Max 1100 L/min
electricity Consumption : Max 11 Kw Hour (average) – 380 V.
