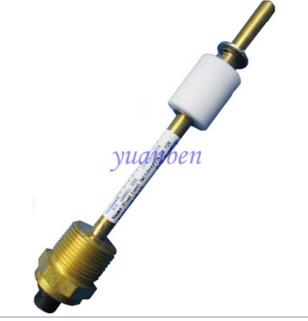

LS-726 Level Switch

We are a quality-driven firm and make sure that our offerings are properly kept and processed. For this, we have installed all the in-house storage facility that helps us in meeting bulk and urgent requirements of the clients. We conduct payment procedure in a safe manner through both online and offline processes. You can conveniently pay in cash as well as through bank transfer.

Single Level Refrigerant Recovery Switch :

• Yuanben Company's P/N - LS-726 and LS-988 are 80% shut-off switches for all standard 30 and 50 pound D.O.T. approved recovery tanks.
• P/N -  LS-988  – Yellow Brass stem and fitting; 316L Stainless Steel float,
• P/N -  LS-726  – Yellow Brass stem and fitting; Teflon float
• Yuanben company offers 80% Shut-Off Switches that are designed specifically for overfill protection of Refrigerant Recovery Tanks. and meet USA EPA directives for overfill protection of refrigerant recovery tanks. These switches meet rigid ETL Requirements for Refrigerant Recovery Equipment and have been specified to meet the dimensions of the recovery tank manufacturer. Yuanben company have the flexibility to customize a switch to meet your specific needs including multiple floats, various actuation levels and a variety of wire or connector terminations. The 80% Shut-Off Switches have a pressure rating to 300 PSIG ( or 400PSIG if required) and are standard for 30pound and 50pound D.O.T. refrigerant tanks. TEL endurance tests have been performed at 120/60, 240/60, 24/60, 5 VDC, 12VDC and 24VDC ensuring a quality product for your application.
• Yuanben Company can provide customized switch designs to meet specific customer needs, including multiple floats, actuation points or termination styles.
• P/N LS-726 and LS-988 have wetted materials that are compatible with all commercially available refrigerants.


Features :

• Highly reliable
• Float options and custom designs available
• ETL and CE approved


Specifications :

• Switch Operation SPST normally closed (dry state)Stem/Mounting Material and Float MaterialP/N -  LS-988  – Yellow Brass stem and fitting; 316L Stainless Steel floatP/N -  LS-726  – Yellow Brass stem and fitting; Teflon floatElectrical Rating20 Watt Switch Pilot Duty Rating -  Electrical Rating (Resistive Load) -  50VA, 120-240 VAC, 12-30 VDC
• Max. Overall Length (LO)5.31" ,  4.75” (standard tpye)Connector Options -  P/N -  LS-988  3-pin connector, Brad Harrison 7R3A06A19A120 Series or equivalentP/N -  LS-726  3-pin connector, Brad Harrison 7R3A06A19A120 Series or equivalent Also, we provide a cable with connector.
• Specific Gravity 0.70 ( P/N -  LS-988 ), 0.50 ( P/N -  LS-726 )
• Mounting Attitude Vertical Mounting Size3/4" NPT, fitting hex is 1-1/16" Pressure 300 PSIG, maximum Ambient Temperature-40 to 300
