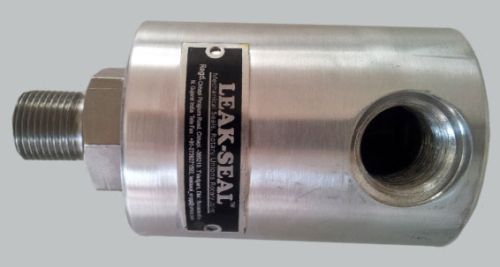

LS-RU-19-1P-T is another type of Passage Rotary Unions manufactured by us. Our LS-RU-19-1P-T Type Passage Rotary Union is fabricated using raw material which adds durability to its construction. We make available LS-RU-19-1P-T Type Passage Rotary Union for Air and Hydraulic Oil service, in different sizes as per the requirement of the customers. Our LS-RU-19-1P-T Type Passage Rotary Union is marked by excellent performance and strength.
Salient Features

• Single Passage Rotor Connection Design
• Stainless steel rotor
• Self supported rotating union
• Solid raw materials housing
• Radial housing connection
• Balanced mechanical seal with micro lapped
• 3 Vent holes and nipple for lubricating
• Standard make bearings (Depend on operating data)
• Better resistance against Vibrations, Shock and Media hammering
• Easy installed and repaired by the user

Operating Data

• Pressure : For Air 10 bar, For hydraulic 60 bar
• Temperature : Up to 120^oC
• RPM (Speed) : 3500

Connection Type

• Threads on the Rotor : BSP in LH & RH
• Threads on B-Port : NPT

Standard Sizes available

• 1/8" to 1-¹/â��â��
• Other sizes available upon request
