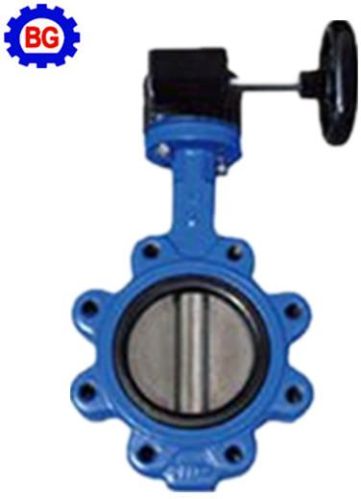

Contact Supplierwe are offering lt butterfly valve. bg230series butterfly valve
nominal diameter:50~1200(2�~ 12�)
nominal pressure:1.01.62.0mpa
applicable temperature:-10â°c~150â°c
drive:hand lever,worm,electric actuator,pneumatic actuator
applicable service:fresh water,sea water,food,natural gas,alcoholic,salt,acid,alkali,oil,steam,air etc.
products features
a.wafer or lug body style fit between ff or rf flanges.
b.ptfe bushing ensure the maximum shaft support and certralized alignment.
c.360 degree polished disc assures positive on-off
d.edge-boot seat,it is new type in market .can reduce the torque also fit various flanges,easy to replaceable.
e.universal iso5211 mounting pad,can suit for all kinds of actuators such as handles,gear box,electric actuater and pneumatic actuators
f.round with key,square and double "d"of stem configuration are for you selection.
material of construction(as per your request)
body:cast ironductile iron
bushing:ptfe
o-ring:epdm
shaft:stainless steel
disc:stainless steel
seat:epdm
