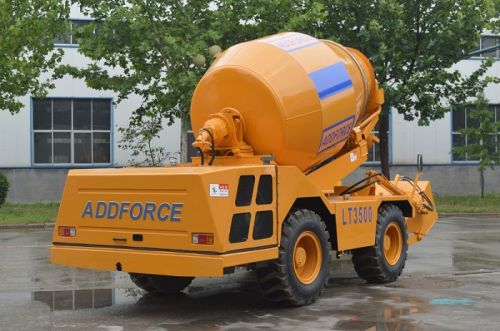

Lt3500 Addforce Mobile Self Loading Concrete Mixer Truck

Mixing unit: drum capacity 5.3m3. Concrete output: 3.5 m3 per batch. The mixing unit is slewing hydraulically through 300° for high discharge over 2.2 m to the four sides of the vehicle.
Engine: yuchai yc4125z,diesel,water-cooled,4 cylinders. Rated power 92kw2200rpm.(125hp)engine mounted transversal on the rear.
Transmission: full hydraulic driving. Danfoss & huada . Pump and motor are connected to the differentials through a 2 speed reducer (working and transfer). 4 wheel drive and 4 wheel steering.
Speed:working speed from 0 to 9 kmh, road transfer from 0 to 25 kmh
driving seat:front cab on side of loading shovel. Rops-fops type complete
hydraulic system: three circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 2 gear pumps for services. Inlet and outlet filter. Heat exchanger wateroil-air type.
Joymix:all hydraulic functions of shovel controlled by a single - fully servo controlled joystick.
Loading shovel:capacity 650 liters, complete with hydraulic opening gate.
Chute: slewing. Fitted with two pins easily detachable to increase the discharge height.
Water system: self-contained. Hydraulic driven water pump, water meter. High pressure water pump & washing gun
gradient: fully loaded 30%
brakes: oil bath disc brakes inside differential axles. Twin indipendent circuits. Hydraulic parking brake
tyres: construction tyres 1670-20.
Steering: hydraulic. 3 way steering.
Electric system: 24v. Safety battery cut-off.
Tanks: water: 2x350 liters. Diesel: 165 liters. Hydraulic oil: 150 liters.ch chassis: steel profile specially chassis:engineered for off-road operations.
Overall dimensions long: 7.2m width 2.5m high: 3.3m
weight:about 8200kgs, equally distributed on both axles
safety: machine equipped with checking and block valv
