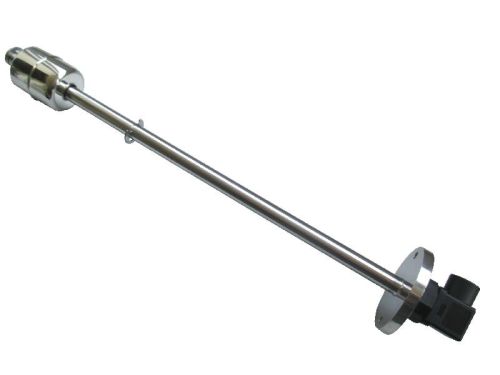

    LTCS-001 Level and Temperature Compound Sensor

    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world

    Wholesale as well as retail consignments of the goods can be undertaken by us with ease. In addition, we promise to make as per schedule delivery. Ours is a well-established firm located in....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 18 Years
    • building Nature of Business Supplier
    • Year of Establishment 2000

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    Wholesale as well as retail consignments of the goods can be undertaken by us with ease. In addition, we promise to make as per schedule delivery. Ours is a well-established firm located in SHANGHAI(China) and engaged in the business of providing a wide assortment of quality products.



    Description :

    • The level regulator type NR 1/2”,3/4”,M20,M24-EExi for tank insert is a solenoid switch, operating without contact with the function of monitoring and regulating liquid levels and temperatures.
    • The switching tube contains bistable protective gas contacts, fixed in position. For fixed contacts, the contact intervals and their function must be agiven.
    • The permanent magnet, built into the float, switches the contacts when the level changes. The switching difference (hysteresis) is 4mm. For temperature monitoring and regulation, thermal elements such as thermal contacts can be additionally incorporated.
    • The level regulator is maintenance-free for nondeposit media.
    • The device has to be installed by specialists only.
    • Max. visconsity ISO VG 68



    Technical Data :

    • Switches tube -  brass max length=500mm
    • Connection -  Brass G1/2” SW27;G3/4” SW32; M20*1.5 M24*1.5
    • Nominal pressure -  1Bar max
    • Medium Temperature -  80 degree C
    • Float ball -  plastic or Stainless steel
    • Level contact -  normal Make / break contact
    • Operating voltage -  level or thermal switches for 220Vac,
    • Thermal element -  pt100,thermal contact
    • Thermal contact Hysteresis 1K , calibration +_2
    • Number of function -  3 max can be incorporated
    • Mounting position -  vertical +_20


    Note :

    • Max switches current  -  0.5 A (level or thermal )
    • Max Switches capacity 50W/VA
    • Capacitance -  0.5pF
    • The life span of level contact  amount by max charging 1000k cycles, For the inductive load , capacitive load and lamp load, the life of contact will be reduced.
    • Thermal sensor Pt100, measuring current 1.0mA
    • Max current 7.0mA seif-heating coefficient E in c/mW in air


    Graph


    Download Detail File : Click Here

    Electrical Connector And Terminal


    Download Detail File : Click Here
