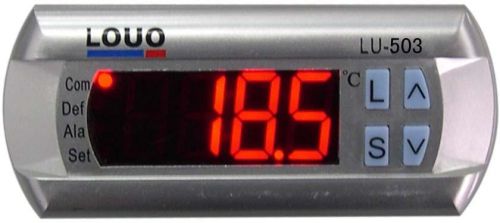

LU-503 Refrigerator Temperature Auto Control

MOQ10 Pack(s)
Power inputAC220V, 50/60HZ
Alarm outputbuilt in buzzer.
Temperature accuracy0.5℃
Supply TypeManufacturer
Preferred Buyer Location All over the world

We are offering lu-503 refrigerator temperature auto control. lu-503 refrigerator temperature auto control specification: dimension: please refer to the diagram 2 power input:ac220v, 50/60hz ....

Company Information

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 2010

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering lu-503 refrigerator temperature auto control.
lu-503 refrigerator temperature auto control
specification:
dimension: please refer to the diagram 2
power input:ac220v, 50/60hz
ambient :-40℃~~60℃, 5%~`~95%rh( no dew)
temperature accuracy: 0.5℃
temperature setting range:-50℃~`~40℃
temperature display range: -50℃~`~40℃
temperature sensor:ntc10k, material with pvc, with 1.5m
compressor relay output:5a/250vac
alarm output: built in buzzer.
function:
compressor start-up with delay protection
setting parameter saved automatically
recovery the factory defaults
the maximum and minima temperature records
cycle of defrosting , nature of defrost
function mode, led indication
temperature sensor is linked or not ,temperature upper limited alarms.
The maximum and minima temperature limited alarms.
buzzer alarm output
alarm code and led indication
support rs485 circuit, communication protocol: standard modbus(only lu-702 with the function).
digital temperature controller refrigerator parts
thermostats temperature control
