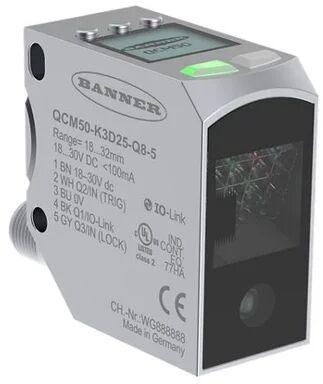

Luminescence Sensors, For Industrial

₹ 800 / Piece

Product Details

ApplicationIndustrial
FeatureGood Quality, Long Life, Rust Proof
ConstructionMaterials: Zinc die-cast, matt chrome housing; PMMA front screen and display
Maximum Capacitive Load< 100 nF
Warm-up Time5 minutes
Vibration and Mechanical ShockEN 60947-5-2
Environmental ConditionsOperating: -20 DegreeC to +55 DegreeC (-4 DegreeF to +131 DegreeF) Storage: -20 DegreeC to +80 DegreeC (-4 DegreeF to +176 DegreeF)
Environmental Rating3IEC IP67, IEC IP69
Control InputTrigger; keylock
Supply Voltage and Current18 to 30 V dc Less than 60 mA, exclusive of load
Output RatingsN.O. / N.C. Output current, Ie: < 100 mA Switching output (Q): Auto-detect (Q1)1 / NPN / PNP
IndicatorsLED 1 (amber): output indicator LED 2 (green): power indicator, IO-Link LED 2 (red): status/error in
Power On Delay< 150 ms
IO-Linkk Communication mode: COM 2 Minimum cycle time: 4 ms SIO mode: Compatible Length of process data: 2
Light UsedLED, white
Supply Protective CircuitryReverse polarity protection UB / short-circuit protection (Q)
LED classLED risk group 2 (EN 62471:2008)
