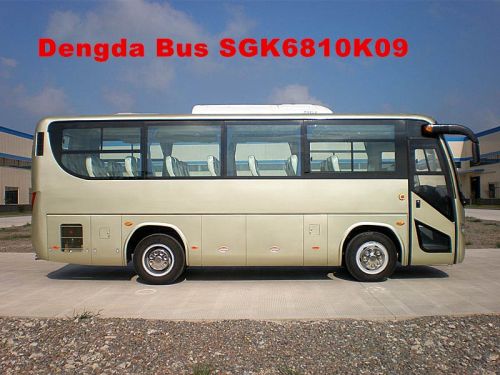

Contact SupplierWe are offering luxury bus .
Sgk6810k09
seat:24~35
l*w*h:8120*2450*3345
g.v.w.(kg):7520
medium tour bus,passenger bus,luxury coach,large bus,coach bus
model sgk6810k09
dimension
overall length (mm)
8120
overall width (mm)
2450
overall height (mm)
3345
wheel base(mm)
3800
wheel track frontrear(mm)
19101800
frontrear overhang (mm)
18682450
performance
grade ability (%)
ã¢ï¿½â¥20
min. Turning diameter (m)
18
max. Speed (kmh)
100
fuel consumption (l100km)
21
max. Braking distance (m)
ã¢ï¿½â¤8
approach angle departure angle (ã�â°)
109
specification
g.v.w. (kg)
7520
rated max. Mass (kg)
10250
passenger capacity
24-35
exhaust standard
euro1, 2, 3, 4
engine
model
yc4g180-40
type
inline four cylinders,4 stroke,forced water cooling,liquid cooling,in-line pump
power (kwps)
132
max.torque(n.mrpm)
660
displacement (ml)
5200
chassis
model
hfc6782kygf
type
rear mounted
redirector
booster brake
clutch
single disc ,dry
transmission
5-gear
suspension
multi-piece spring
brake system
dual -circuit pneumatic brake
tyre
7.50r20
