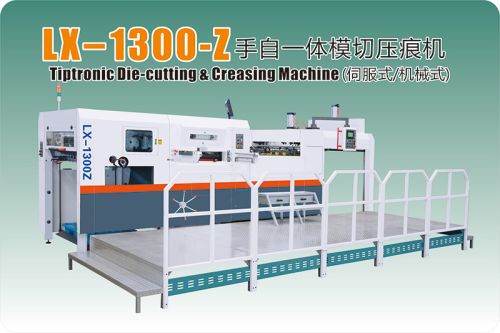

LX-1300Z Automatic Die Cutting and Creasing Machine

Brief Introduction MY1300-Z Auto-manual feeding die cutting and creasing machine was improved and optimized on traditional die cutting machines, not only suitable for die cutting and creasing of corrugated papers, but also suitable for cardboard papers. The machine adopts modular design, each unit can be combined freely, feeding unit, stripping unit can be added or removed when you feel necessary. Adopt vice feeding unit and vice delivery unit, realizing non-stop running. Mirror machine can be tailor-made according to demand.
Main parameters

• Max. paper size 1300*930mm
• Mini. Paper size 550*500 mm
• Max. die cutting size 1280*920 mm
• Max. pressure 300N/c
• Suitable paper thickness 1-8mm
• Max. speed 5000S/H
• Max. height of feed paper 1400mm
• Max. height of delivery paper 1200mm
• Main motor power 11KW
• Total power 17KW
• Total weight 14.5t
• Overall dimension 4400*3500*2200
