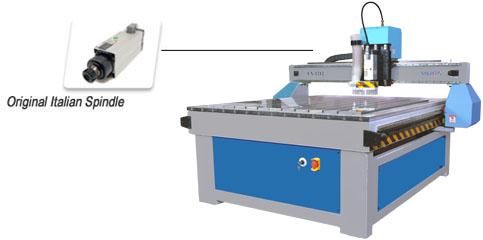

LX CNC Router

Get Latest Price

Spindle Speed18000 RPM
Repeated Location0.025 mm
Spindle3 KW Air Cooled (HSD Italian)
Maximum Traveling Speed20 mtr/min
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

MEHTA CAD CAM SYSTEMS PVT. LTD.

Ahmedabad, Gujarat

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Spindle Speed18000 RPM
Working Area (X, Y, Z)1200 x 1200 x 200 mm
Power SupplyAC 230V/1PH
Maximum Traveling Speed20 mtr/min
Outer Dimension1902 x 1750 x 1541 mm
ModelsLX - 1212
Cutting Tool DiameterØ3 to Ø14 mm
Spindle3 KW Air Cooled (HSD Italian)
Distance between Bed and Gentry200 mm
Operating SystemDSP - Hand Held Controller
Weight650 Kg
Driving SystemStepper Motor
Repeated Location0.025 mm

Performance and Features of LX 1212 CNC Router

• 25 MM Linear Guidways for high positional accuracy and long life with high motion accuracy.
• Original Italian spindle gives you very stable, trouble-free, maintenance-free performance for long period of time.
• Fast speed and high accuracy ensured by gear transmission equipped on CNC Router.
• High accuracy and heavy workload ensured by imported square rail.
• Periodic lubrication maintenance provided by automatic lubrication system.
• Axis Drive system : X, Y - Rack, Z-Ball Screw.
• Working table is covered with rigid PVC sheet for long life of aluminum T slot table.
