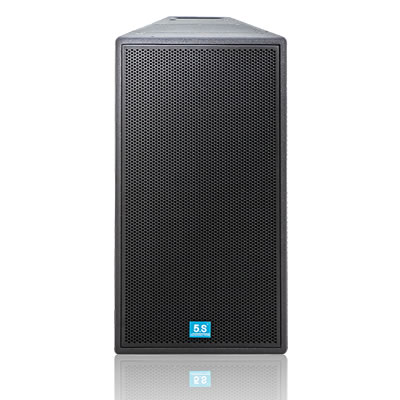

LY-D15 Fullrange Matrix Loudspeaker 440mm*810mm*640mm

Description:
ly-d15 of 5.s brand is a two-way multifunction full range loudspeaker system, the design of ly-d15 is equipped with flat square steel fiber horn that can be adjusted which with a coverage of 90â°*15â°. It is embedded in 15 "75 mm voice coil, power is extremely low distortion of the bass unit and a 1.5â�� throat ,75 mm voice coil compression driver unit.the lf section adopts italian b&c imported products,the hf section is using french phl imported products and have flexibility to use professional hanging ornaments.
As a two-way system,ly-d15 can be driven directly and also can match two channel power amplifier systems to achieve the ultimate high output.ly-d15 of 5.s brand is applicable to the hi room, bar, slow rock and he hall, bring a strong solution to the audio system.
Applications�
large stadiums, arenas, all kinds of performances
entertainment venues, nightclubs, bars
theme park and concert hall
mobile or fixed installation
as subwoofer of other audio system
specifications:
type: lf1*15"+hf1*1.5"
frequency response: lf50hz-4000hz hf500hz-20000hz
rated power: lf 600w(aes)pcs hf 70w(aes)pcs
sensitivity: lf 97db(1w&1m) hf 109db(1w&1m)
max. System output 139db�peak�
nominal directivity: down 20â°*up 40â°
crossover frequency� 1.8khz(built in crossover)
impedanceï¼� 8î©box
connectors� 2*neutrik nl4mp lf2+2-;hf1+1-
box connecting components� aluminum ly-d15
enclosure
colour� polyurea paint water-based paint points (all ral colors)
material� 15mm russian birch plywood
dimensions(w*h*d)� 440mm*810mm*640mm
weight: 44.5kg
