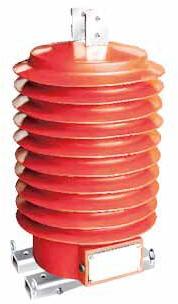

LZZW4-35Q INSTRUMENT MULTI RATIO CURRENT TRANSFORMER

₹ 9,050 / Piece

MOQ3 Piece(s)
Brand NameGFUVE
Phasesingle
Usagecurrent measuring,transform and protection
Country of OriginBeijing, China
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameGFUVE
Usagecurrent measuring,transform and protection
Phasesingle
Country of OriginBeijing, China
Ith/ls (KA r.m.s.)2-140
Wt (KG)90
Idyn (KA peak)5-200
Rated primary current (A)10-1500
Accuracy class combination0.2(S)/0.2(S) 0.2(S)/0.5(S) 0.5(S)/0.5(S) 0.2(S)/5p 0.5(S)/5p
Model NumberLZZW4-35Q
Surface creepage distance (mm)1500
Rated secondary output(VA)10/15/30/50/20

The outdoor instrument current transformers lzzw4-35q are fully enclosed and cast in epoxy resin. Instrument transformer is equipped with one core and coil assembly rated for measurement and protection, and then output multi ratio. The current transformers are designed for electric power systems of 50hz60hz rated frequency and 35kv rated voltage. They are used for outdoor mounting. The performances of the products meet standards iec60044-1, iec61869-2 and ansiieee c57.13. The products are applied to metering electric energy, voltage controlling and relay protection. Transformer ct 1a secondary, rct current transformers, protection current transformer 5p20
